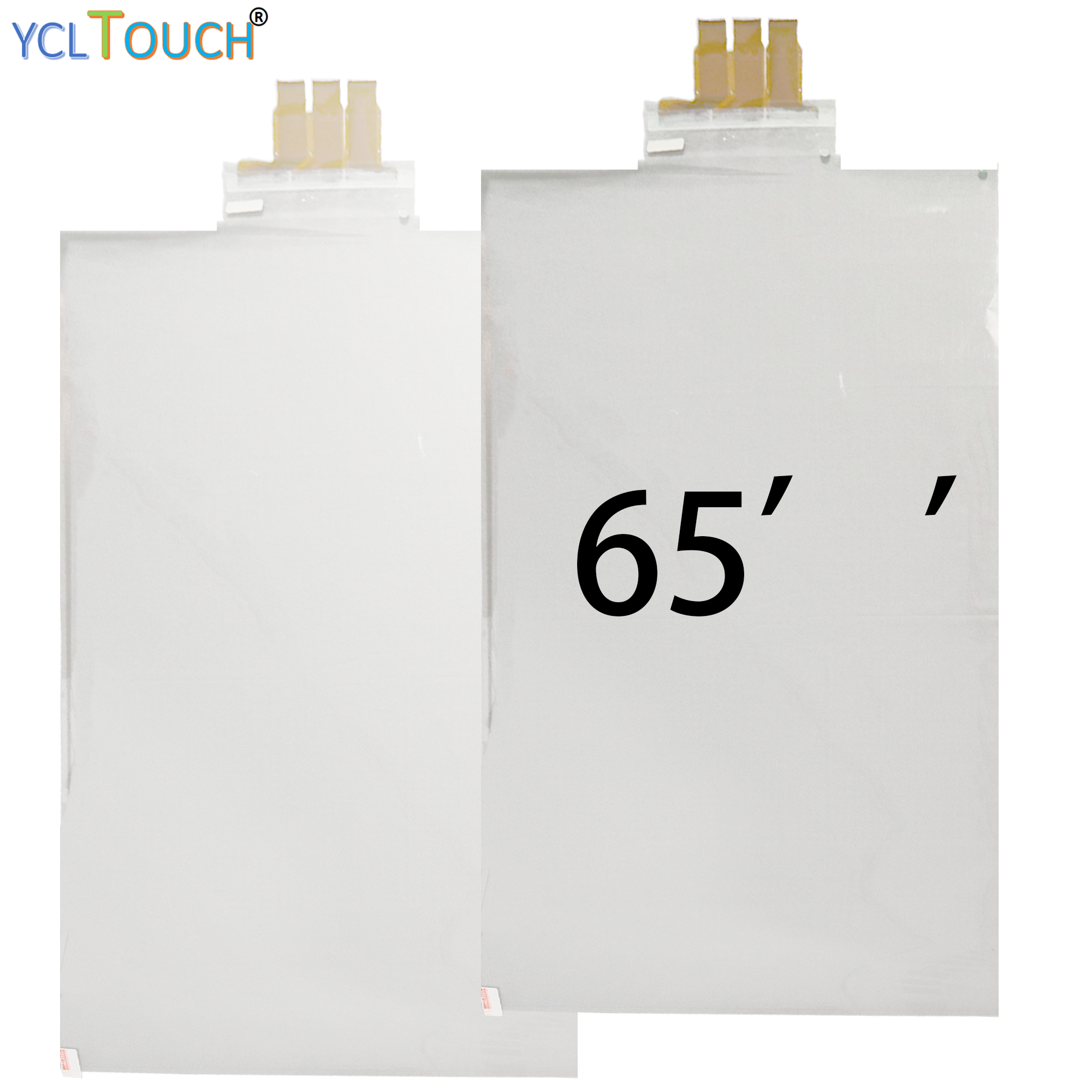

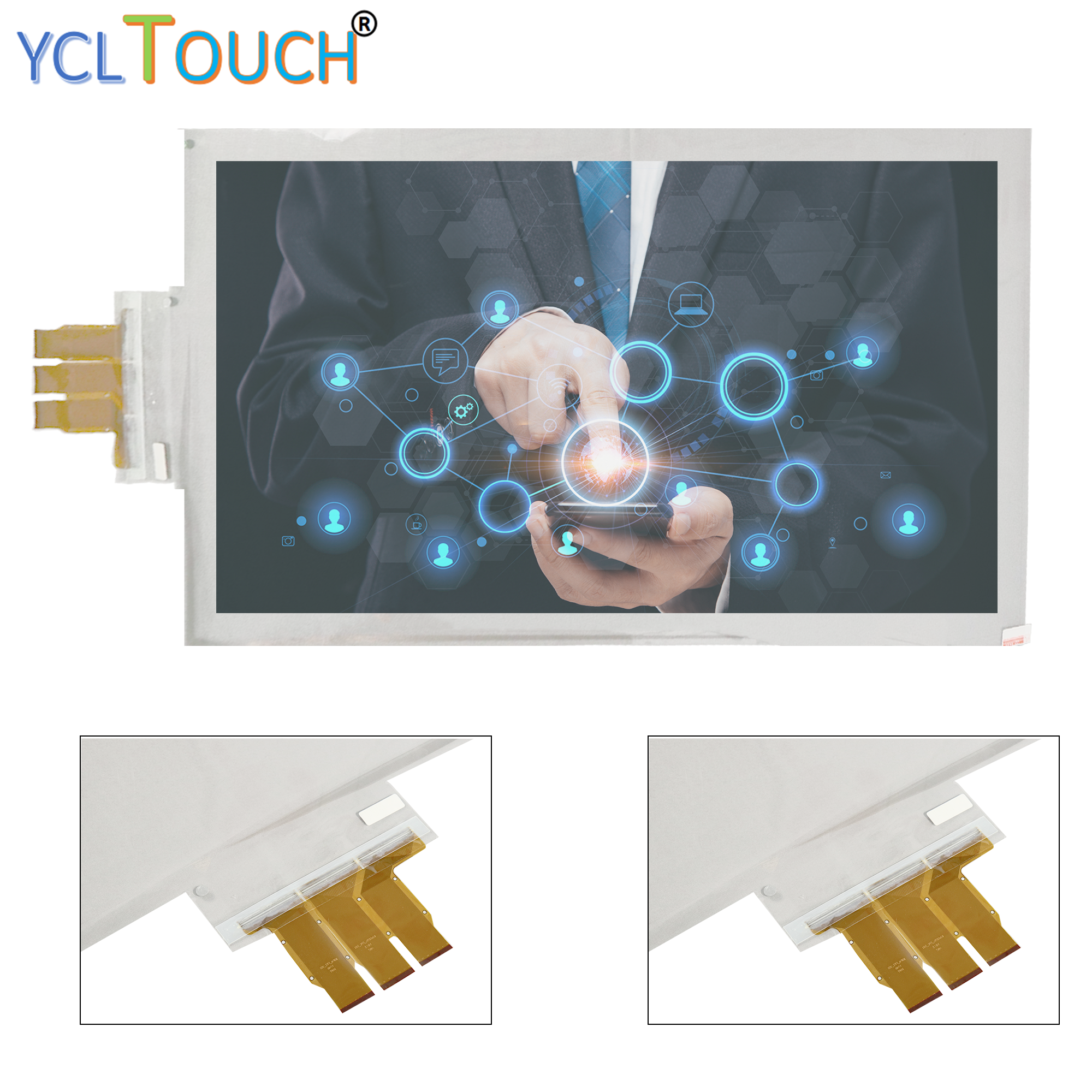

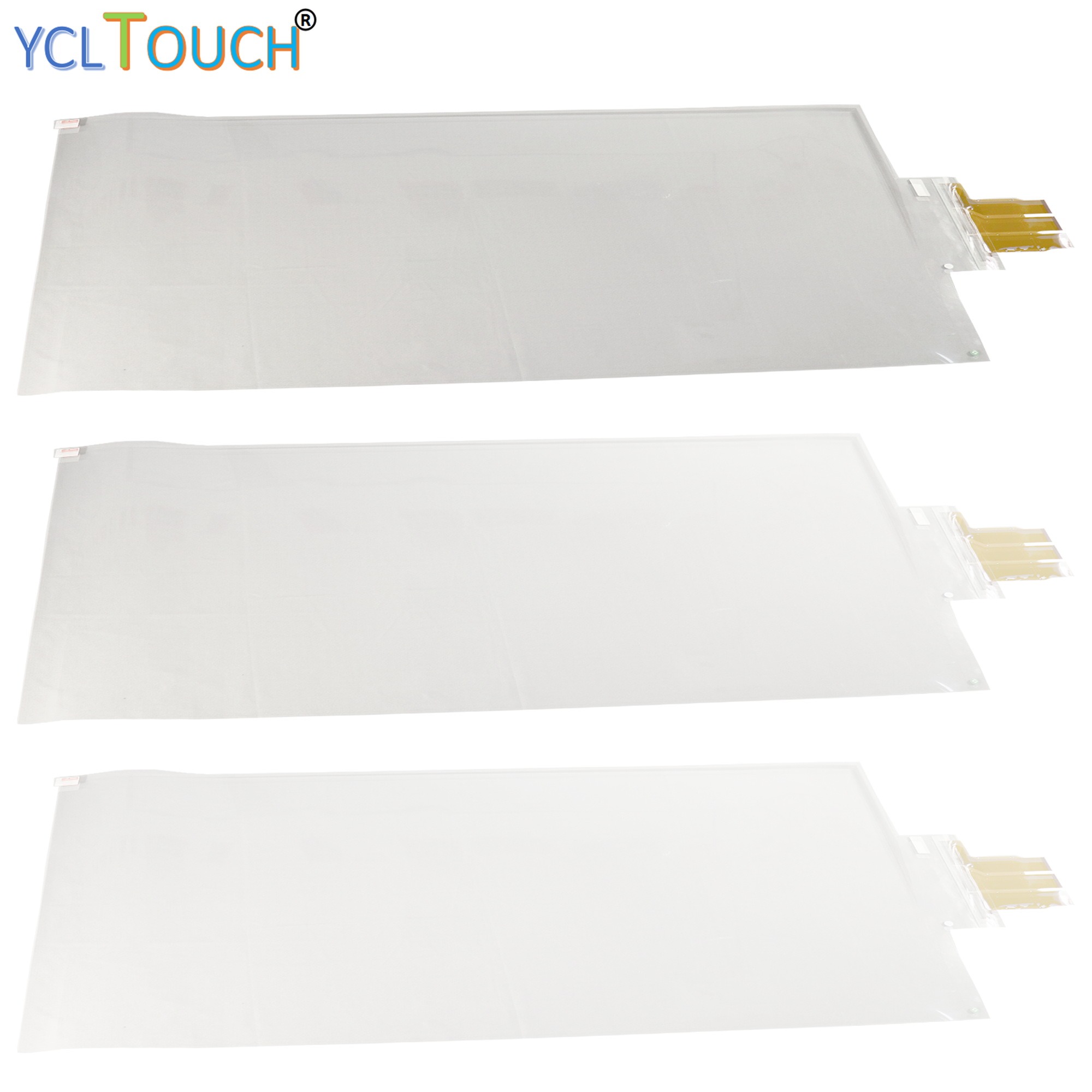

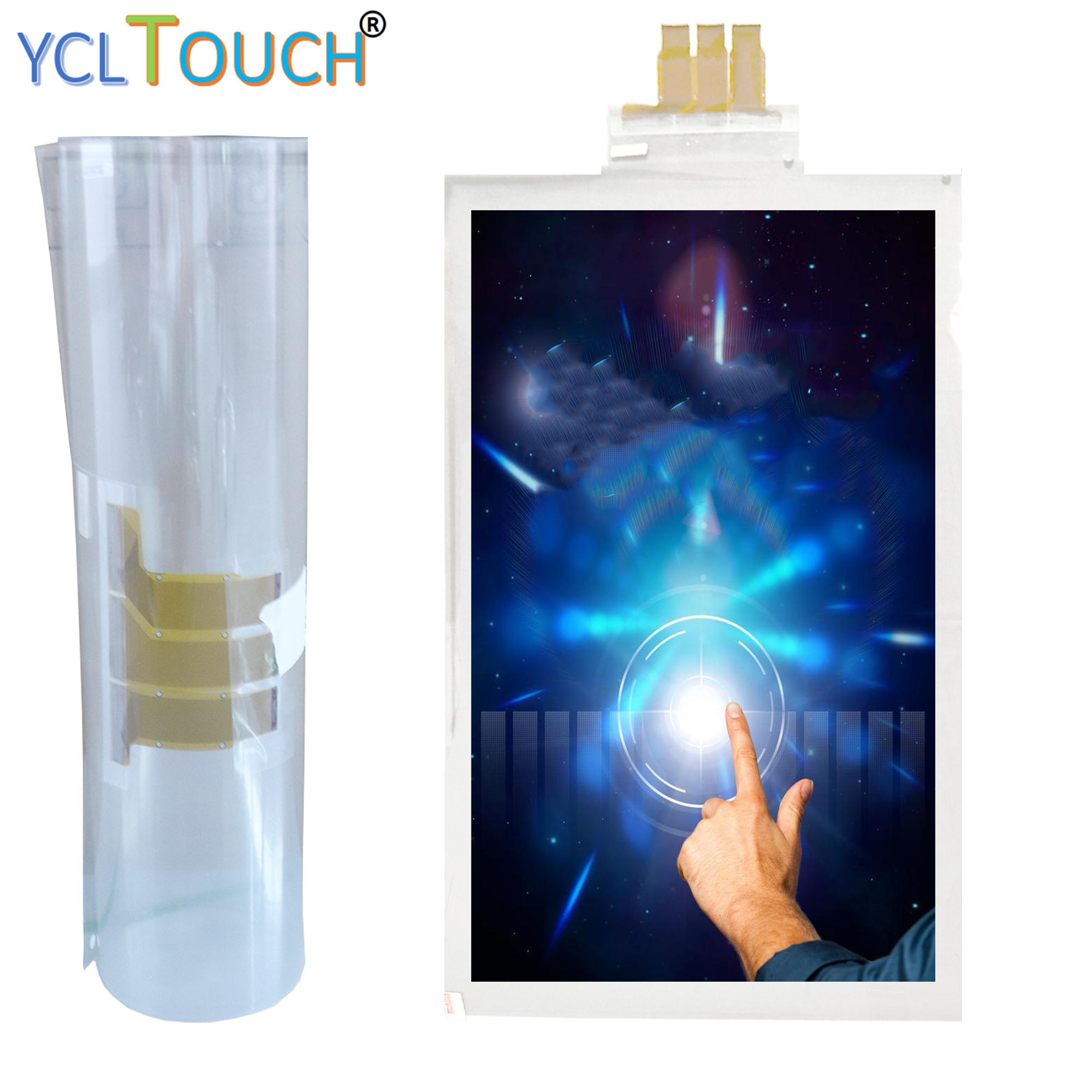

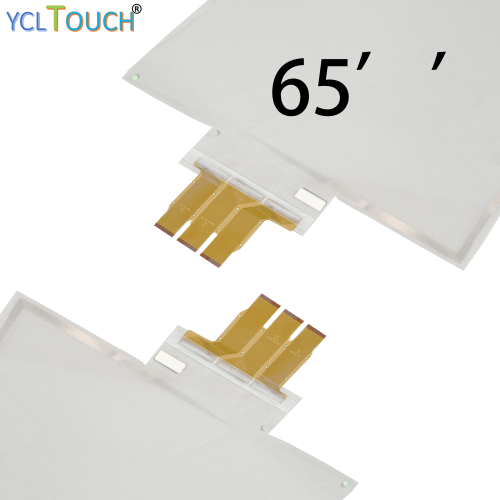

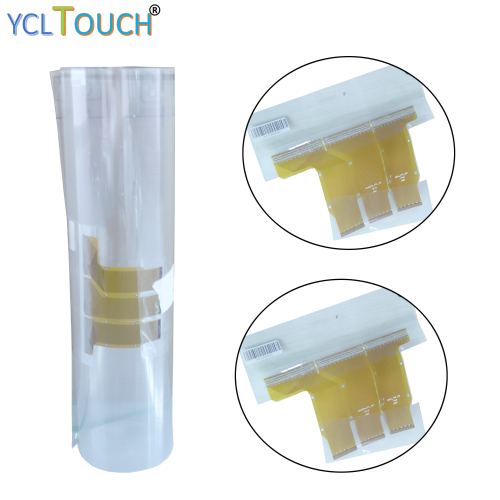

65 inch waterproof capacitive multi touch foil

Basic Info

Brand: YCL TOUCH

Warranty Period (years): 1-Year

Certification: Scoc, Rohs, Ul

Colour: Black

Is There A Package: Yes

Series: For Business

Flatness Ratio: 16:9

After-sales Service: Call Center And On-Line Technical Support

Product Status: New

Types Of: Infrared

Interface Type: Usb

Place Of Origin: China

Additional Info

Packaging: Foam and carton box.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 500 Piece/Pieces per Day

Port: Shen Zhen

Product Description

Factory direct sales, Multiple sizes, support customization

Multi Touch foil

Model:TF-65BC-160

Size from 7"-100", 1-40 points with Dust-proof/ Vandal-proof/ Water-proof/ Anit-glare

Touch Screen Foil Film Product Description

Panel Size	65 inch
Screen Type	FILM
Cover Thickness	0.155mm
Touch Points	10-40 Points Multi Touch
Working Voltage	5V USB
Channel	TX56RX96
Transparency rate	85%
Overall dimensions	1471.5MM×848.3MM
Visual Area	1446MM×816MM

YCLTOUCH Capacitive Touch Film manufacturer
Customize Touch Film from 7-100 inch

- 1. 3500 m2 factory area

- 2. 2-3 weeks for mass production
- 3. Individual customization of size, style, logo print

Touch Foil Product Structure Diagram

Touch Foil Feature:

1.The alloy is more durable, and the USB recognition time prompts 3 times.Transmission speed 480mbps.

2.Multi-touch 10points (up to 40touch points):

Zero Pressure Touch
Click Drag Zoom In
Zoom Out ,And Rotate
Hand,Glove.Stylus
Can Be Touched

3.FPC outlet location can optional long side or short side.Support OED/OMD.Size: 10-100 inches

4.Touch Foil Film

Scanning speed for 8ms
Sensitive operation
Smooth writing
Accurate positioning and touch
No drift
No dead corner touch

5.Light Weight,Can Achieve Curved Surface Integrated No Frame,Pure And Beautiful.
