49 inch capacitive touch screen Pcap

Basic Info

Brand: YCL TOUCH

Certification: Scoc, Rohs, Ul

Flatness Ratio: 16:10

After-sales Service: Call Center And On-Line Technical Support, Onsite Training And Inspection

Product Status: New

Types Of: Capacitive

Interface Type: Usb

Additional Info

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Port: Shen Zhen

Product Description

Capacitive Touch Display Product Description：

1.The multi-layer structure of cover lens, adhesive layer and sensor layer, Tail,Drive IC can be waterproof and dustproof, reduce light reflection, improve light transmittance and enhance the display effect.

Features:

10 point touch
High transmittance
High touch sen

2.Capacitive Touch Screen's features:

support for multiple interfaces;
high strength tempered glass;
extremely fast response;
touch precision;

3.Characteristics:

High response speed
USB interface
Exclusive customization
Suit for multi-system

4.Traits：

Multi-point touch contro
High precision
Smooth writing

5.It can work at temperatures ranging from -20 degrees to 70 degrees.

6.7-500 inch, 1-40 touch points can be customized.

Capacitive Touch Screen Monitor Product parameters：

Panel Size	49 inch
Screen Type	Glass+Glass
Cover Thickness	3.0mm
Touch Points	10 Points Multi Touch
Working Voltage	5V USB
Surface hardness	>6H
Transparency rate	85%
Cover glass O.D.	1132.78*663.0mm
Sensor glass O.D.	1107.56*637.44mm
CG Visual Area	1075.78*606.0mm

Capacitive Touch Screen Panel Features:

1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.

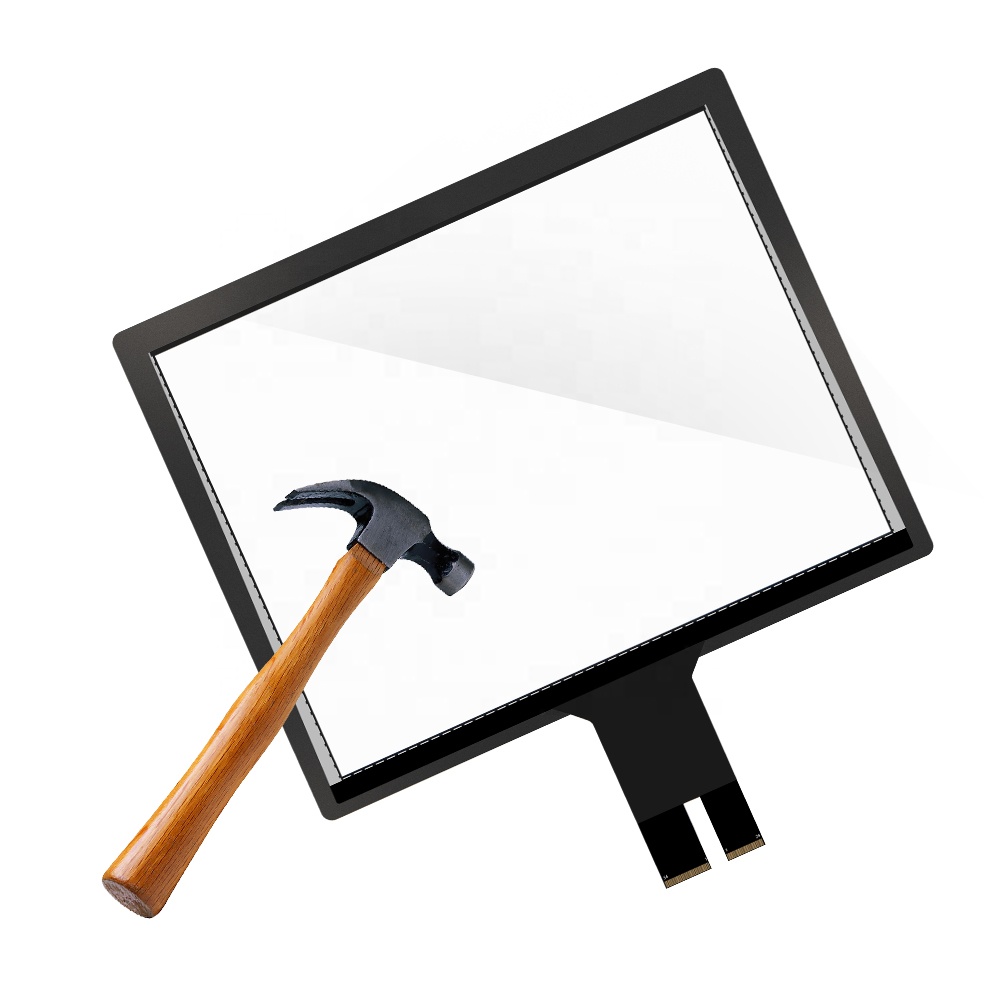

5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.

YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch

- 1. 3500 m2 factory area

- 2. 2-3 weeks for mass production
- 3. Individual customization of size, style, logo print, AG, AR, AF
- 4. G+G/G+F/G+F+F
- 5. Touch with water/glove

Capacitive Touch Screen Overlay Product Structure Diagram：

These are application scenarios.
