Wall mounted High resolution book document scanner

Basic Info

Brand: YCL TOUCH

Certification: reach, Rohs

Product Status: Stock

Types Of: Document Scanner

Scanning Element Type: Cmos

Color Point: 24 Bit

Interface Type: Usb

Place Of Origin: China

Warranty Period (years): 1-Year

After-sales Service: Return And Replacement, Repair

Additional Info

Packaging: Packing accessories : Warranty card, Certificate, 4-meter USB cable, writing pad Carton + foam to protect products during transportation. According to the buyer's demand, wooden cases can also be provided to better protect the product.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Port: Shen Zhen

Product Description

Our Advantages

Over 10 years of experience R&D, Production and Sales one-stop solution manufacturer. Strong R&D capacity, Good quality control, Competitive price, and Fast delivery time.

handheld book scanner Quick Details

effective pixels	≥8 million pixels	Focus Mode	Fixed focus / autofocus
definition	≥1500 lines	colour balance	auto
frame rate	≥15 frames（4656*3496） ≥30 frames（1920X1080）（choosable）	Shooting range	A4（310*220mm）altitude：30cm
Shooting direction	Horizontal, vertical (optional)	interface function	USB output 3.0B port 1\A port 2.02(USB expansion function)
output format	USB2.0 MJPG	Physical key function	Freeze \ photograph \ rotate \ Zoom \ zoom \ light
Light control	Wall touch three-stage cycli control	record	Built-in high sensitivity digital microphone
power supply	USB 5V	power	< 2W
Product Net Weight	2KG	Packaging / gross weight	rough weight（2.3KG）
packing specification	39385282mm （Length * width *height)	Product Packaging	Manual, warranty card, Certificate, 4 m A/B cable, mounting screw pack
bottom structure	Integrated plate plate + metal shaft	Floor bearing	< 3KG
Box ABS plastic body + metal material	Plastic body3.5mm+metal plate（thickness1.0MM）	Fuselage specification	23240363mm(Length * width * height)
unfold size	340232363mm (Length * width * height)	Appearance technology	Scrub + tan + black matte spray
software	Teaching booth software	Software Language	English
software function	Please refer to the software description for comments, comparison on the same screen, photos, 360-degree rotation, etc

CZUR book scanner Product Description

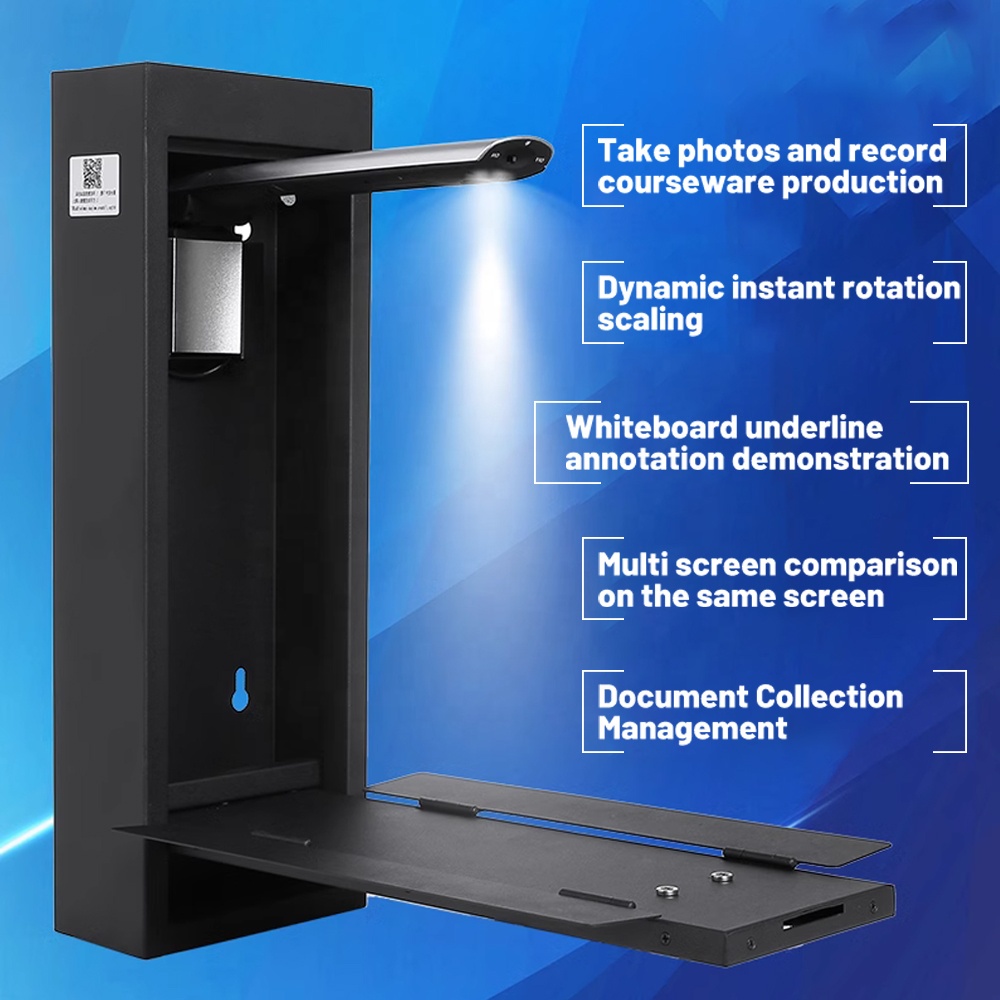

1.Wall-mounted teaching high-definition camera.Can provide qualifications to participate in bidding documents

Delivery teaching software
Wall mounted installation
Intelligent led fill light
1 second scan archive
Whiteboard annotations
Split screen teaching
Photo scanning
Video recording
Physical display
Merge PDF

2.Clear display of physical objects.book to pdf scanner

High definition lens, high fidelity, no drag shadow.High definition pixels 8/13/16

3.Multimedia teaching/real-time projection. Directly connecting to a large screen computer teaching all-in-one machine via USB (the computer requires software installation) can also be used for document shooting. Suitable for various classroom uses and a choice for visual teaching.

4.Product details and characteristics:

Teaching, office, demonstration, indispensable
The product lens adopts a four level touch dimming design
Suitable for use in various complex lighting environments

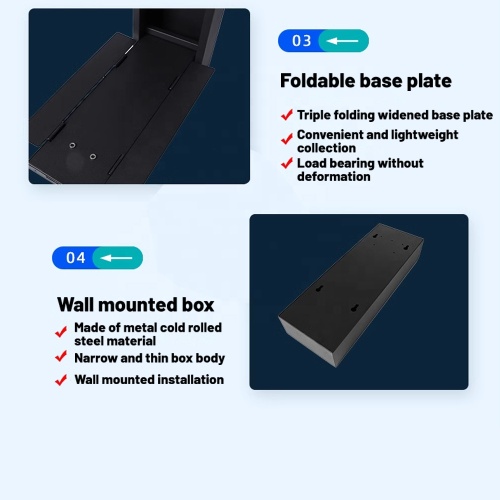

Wall mounted box design

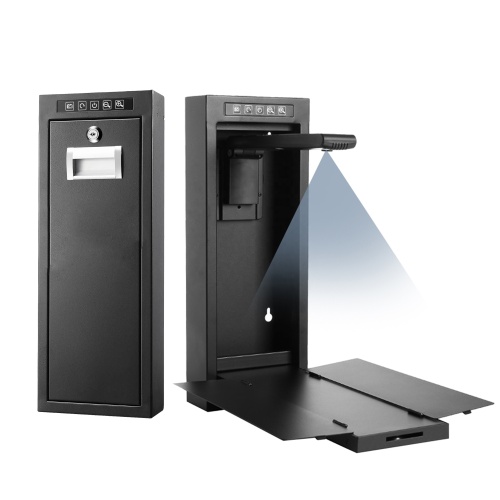

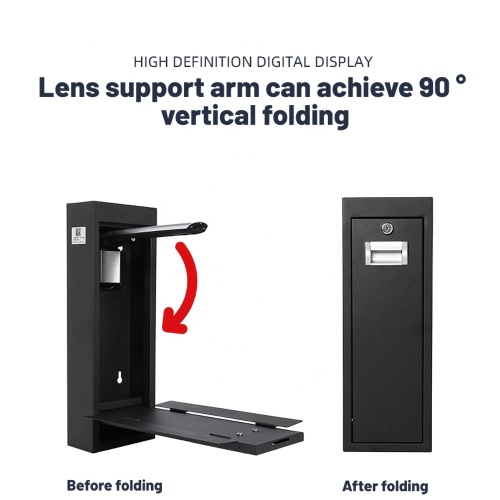

90° opening and closing design, wall mounted without occupying space
Using a metal base plate.

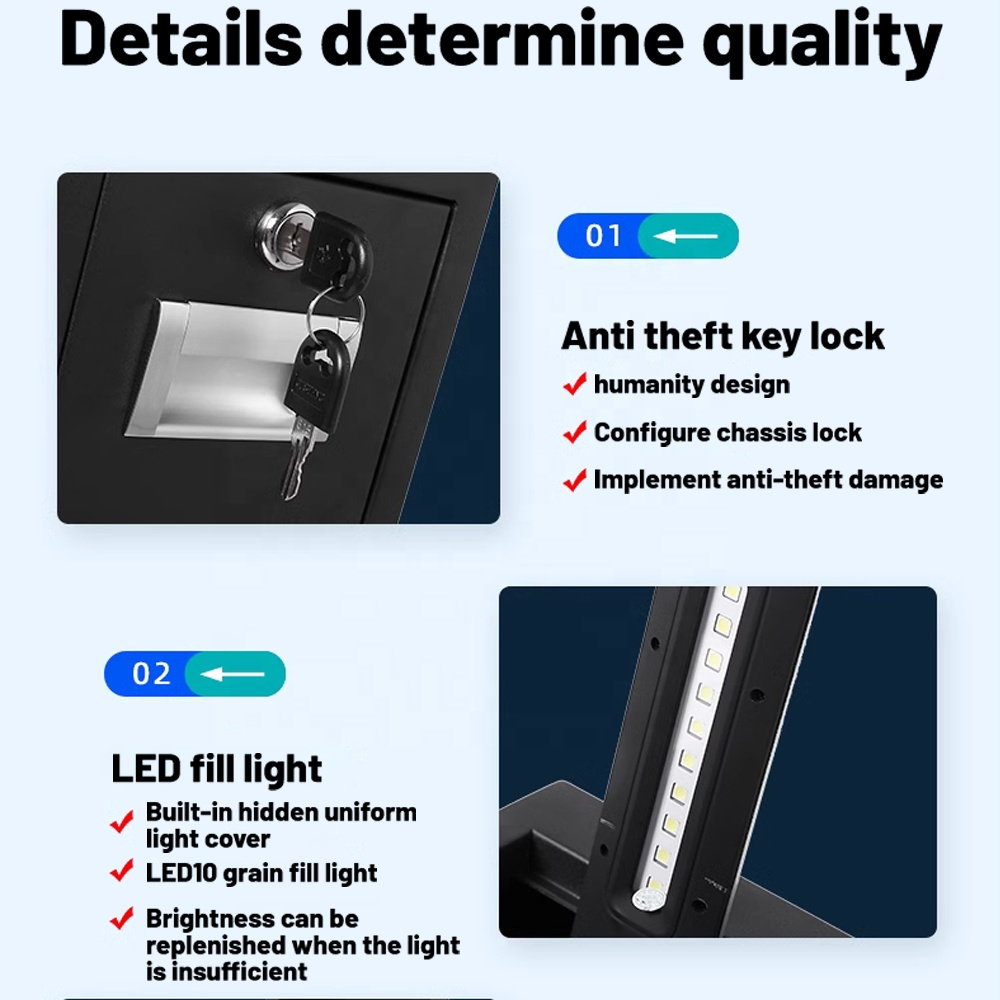

Convenient to store, with anti-theft metal lock.
LED10 high brightness fill light.

5.The entire machine comes with a frosted uniform light cover LED10 high brightness fill light, with even and bright brightness.

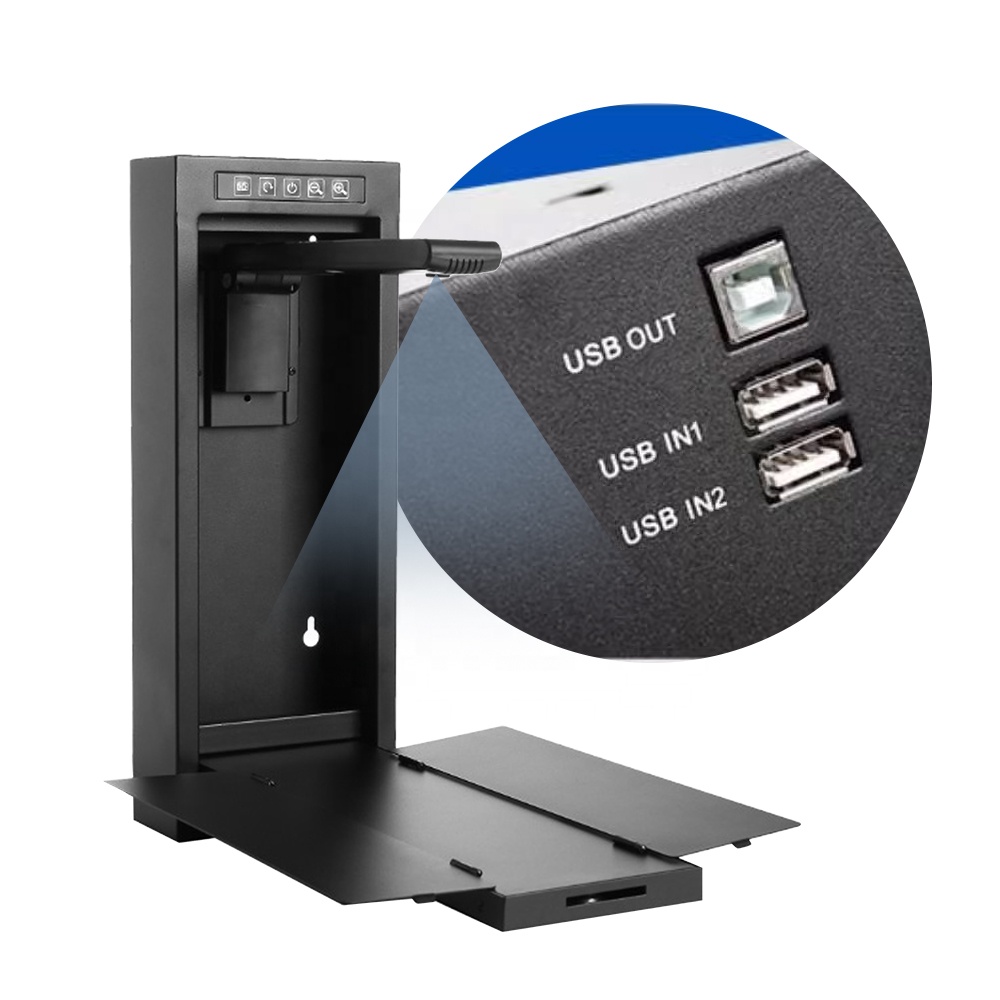

Straight line under the lens for easy hidden wiring. The requirement for power supply and high-definition data transmission using a single 4-meter USB cable.These are application scenario.
