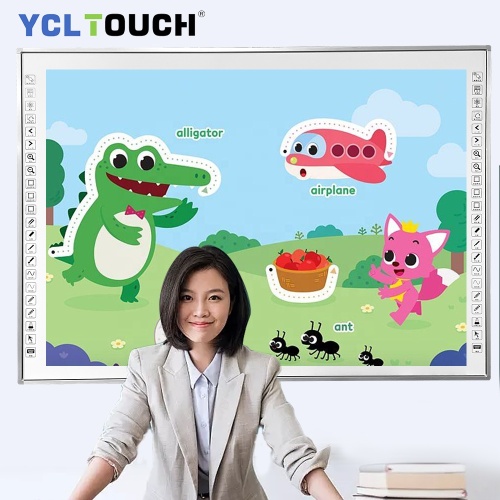

Interactive Whiteboard with projector type

Basic Info

Brand: YCL TOUCH

Material: Plastic

Use: Wall

Shape: Square

Species: Whiteboard

Whiteboard Type: Interactive Whiteboard

Folded: Yes

Additional Info

Packaging: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000 Piece/Pieces per Month

Port: Shunde

Product Description

Product Overview

Z86-B interactive whiteboard for classroom

YCLTOUCH interactive whiteboard Advantages

1. Four sizes to choose from 82”, 86”, 96” and 102”. Offer size ODM service.

2. Self-developed Free teaching software: YCL owns teaching software to perfectly help our customers experience functions on YCL interactive whiteboards.

3. 20 multi-touch to achieve multiple people interacting on the whiteboard at the same time.

4. Rich customization options: A lot of options for customers to custom, such as logo, size, material, shortcut key, function and so on. YCL helps customers to design & manufacture the dream IWB they want.

5. Fast touch response time: 12ms touch response time to let users experience fast & smooth touch performance.

Digital Whiteboard Product Description

1.Large-size touch screen used with projectors to connect an interactive whiteboard to a computer.

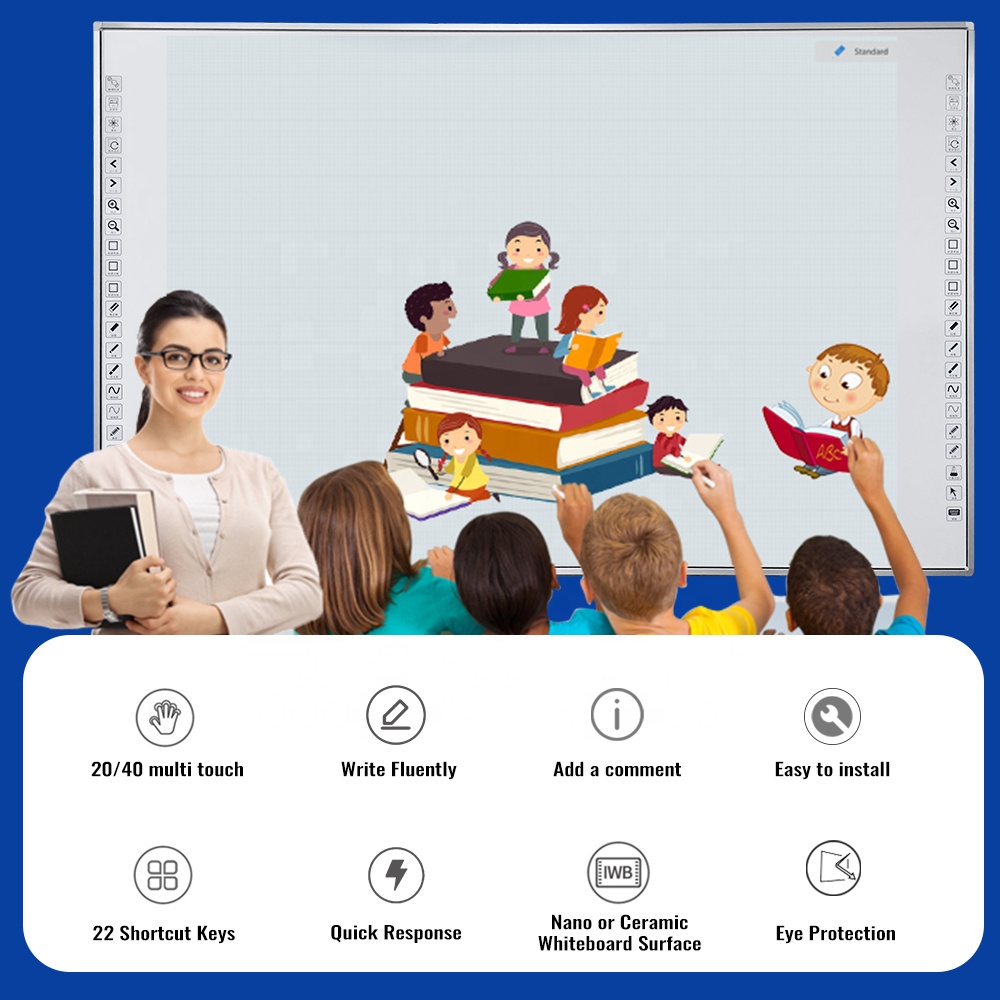

Features:

20/40 multi touch
Write Fluently
Add a comment
Easy to install
22 Shortcut Keys
Quick Response
Nano or Ceramic
Eye Protection
Whiteboard Surface

2.Interactive whiteboard

Fluently touching & writing experience

Infrared recognition high-sensitivity board can write at will, keep writing, annotate at will, erase with gestures, and stimulate brainstorming.

Features：

Single touch
Two point zoom
Multi-point movement
Palm erase
Optional background colour
Rich writing options

Digital Board For Teaching Product specification

Model NO.		Z082-B	Z086-B	Z096-B	Z102-B
Specification	Technology	IR touch technology
	Resolution	32768*32768

	Touch Accuracy	±0.4mm
	Induction Size	≤5.0mm
	Response Speed	≤6ms
	Cursor Speed	≥300fps
	Interface Type	USB
	Touch Objects	Any opaque objects
	Support OS	Windows
Standard Size	Packing Dimension	1775130570mm	1850133570mm	2150133570mm	2295143570mm
	Product Dimension	1693*1223mm	1783*1273mm	2088*1273mm	2213*1355mm
	Active Writing Area	1649.4*1179.4mm	1739.4*1229.4mm	2044.4*1229.4mm	2169.4*1311.4mm
	G.W.	19KG	21KG	24KG	30KG
