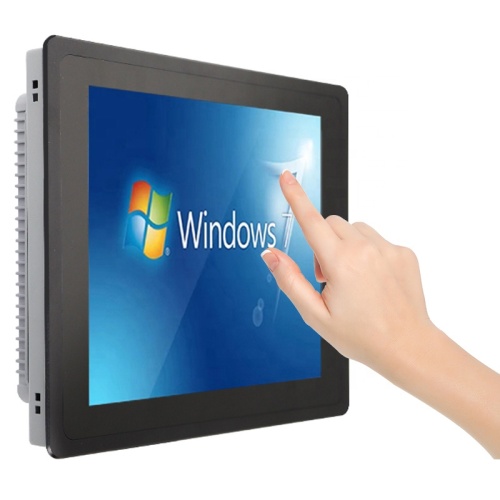

19 Inch Capacitive Touch industrial computer

Basic Info

Brand: YCL TOUCH

Warranty Period (years): 1-Year

Certification: Scoc, Rohs, Ul

Colour: Black

Is There A Package: Yes

Series: For Business

After-sales Service: Return And Replacement, Repair

Product Status: New

Types Of: Capacitive

Interface Type: Usb

Place Of Origin: China

Additional Info

Packaging: Foam and carton box.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Port: Shen Zhen

Product Description

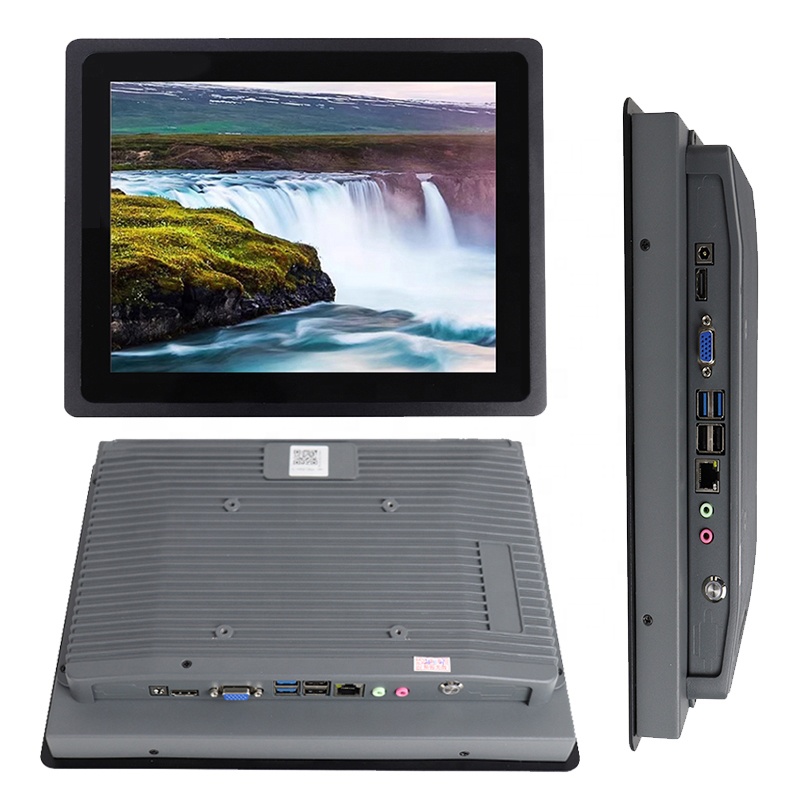

pc fanless Details Images

Industrial Computer advantage

1、10 point capacitive touch, high sensitivity, 24 hours continuous operation.

2、Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.

industrial pc Product Description:

1.Outstanding appearance and stronger performance.Stable performance, more flexible in cross industry applications!

High strength tempered glass
Independently developed motherboard
High performance and low power consumption
Strong and Rich Interface
Multiple installation methods
IP65 dust proof and waterproof
High definition industrial control screen

2.Dust and waterproof up to IP65 level. Effectively prevent splashing water droplets and dust from entering the interior of the machine.

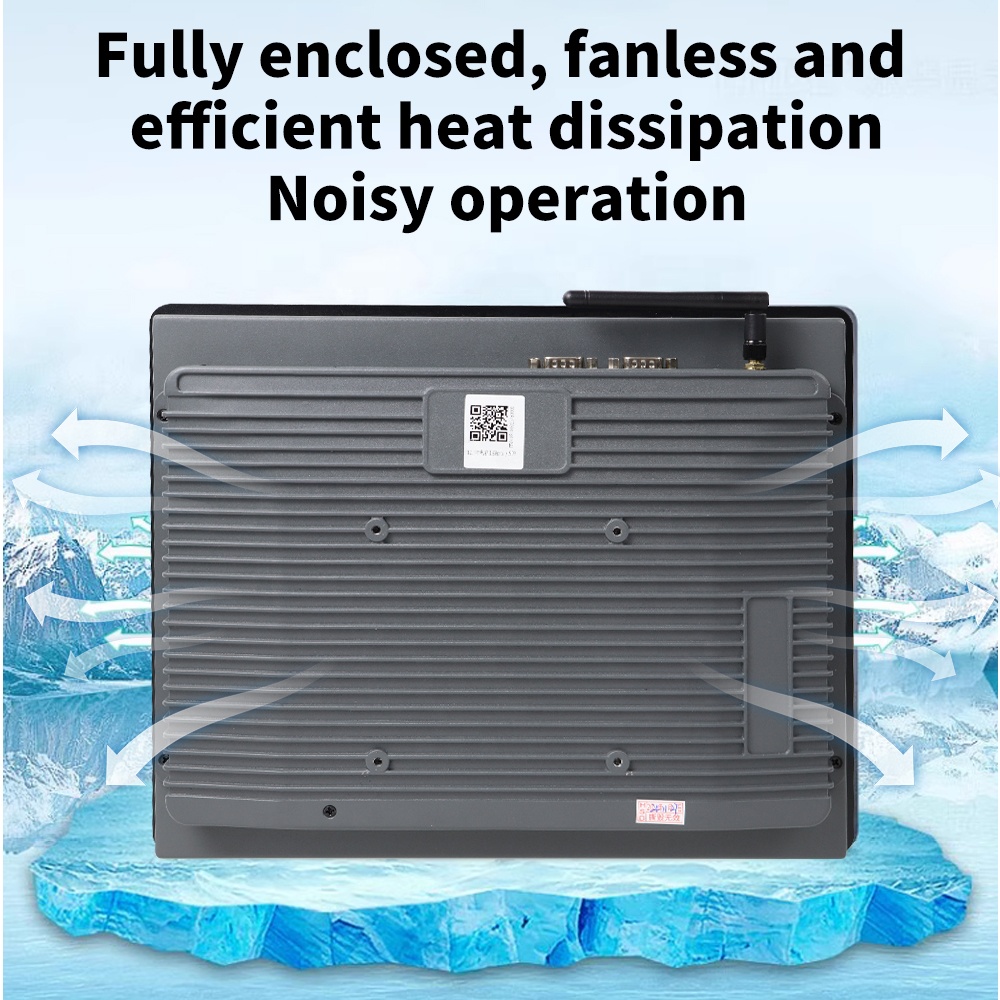

3.Fully enclosed, fanless and efficient heat dissipation,Noisy operation.Aluminum alloy integrated body, designed with arc-shaped heat dissipation structure.

4.LED industrial control screen high-definition display.Adopting LED backlight technology combined with high-definition industrial control screen,experiencing a visual feast, customizable high brightness!

6.5ms quick response
16.7M Dynamic colors
350cd/㎡brightness

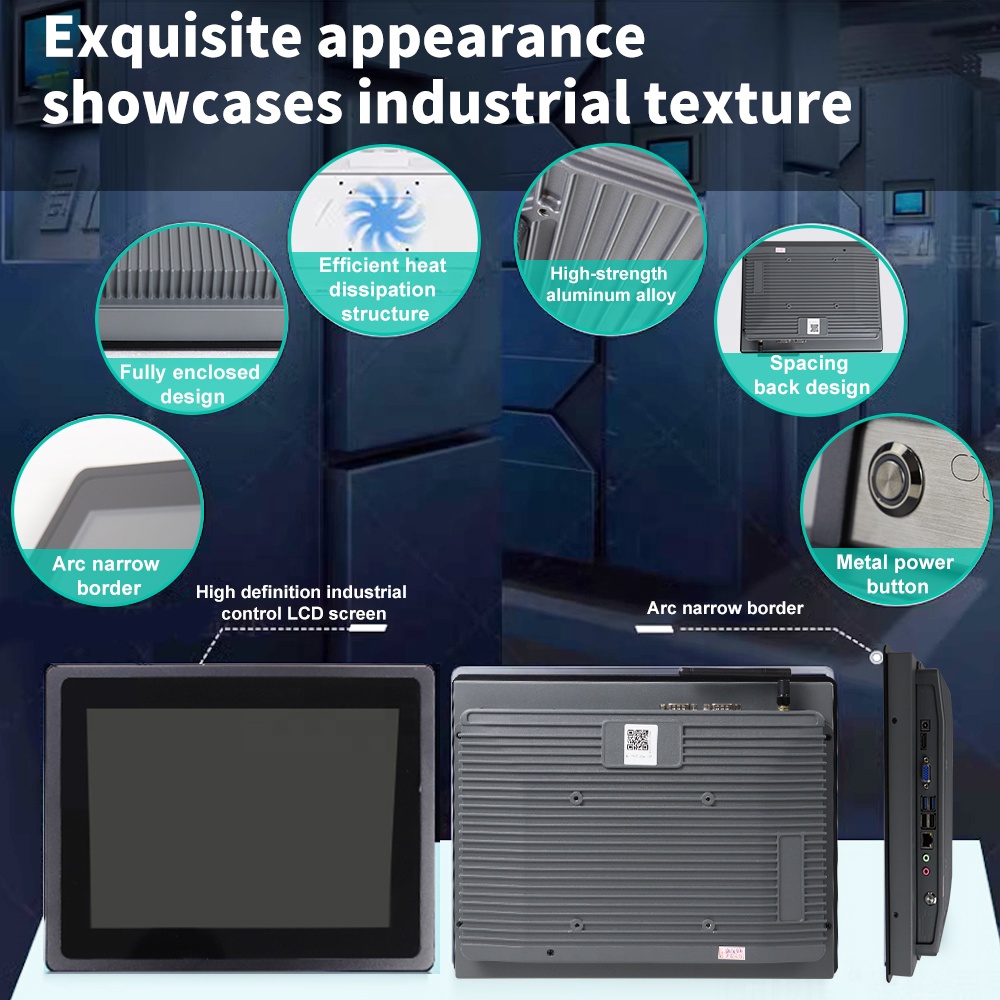

5.Exquisite appearance showcases industrial texture.Exquisitely crafted wire drawing process to create truly industrial grade quality, multi scenario application products.

6.Thin border embedded seamless fit.Highly compatible with various cabinet equipment,easy to install and visually appealing overall.

7.Strong performance. Supports uninterrupted and stable operation 24/7.Meet the performance requirements of engineering regulations,with low failure rate and the ability to operate continuously and stably 24 hours a day, 24 hours a day.

IP65 dustproof and waterproof
EMI/EMC Anti electromagnetic interference
Standard shockproof GB2423
Anti static electricity 4KV~8KV
Prevent over current Anti surge
Flammability prevention explosion-proof
High and low temperature resistance 10C~60C
Supports wide compression
7*24 hours stable operation
Complete machine low power consumption

8.Intel Powerful Chips.Multiple system options.You can choose the configuration and system according to your needs.

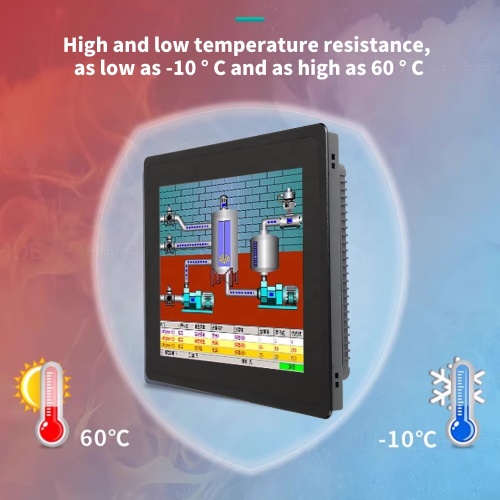

9.Fearless in high and low temperature environments.High and low temperature resistance, as low as -10°C and as high as 60 °C.

10.Preset multiple interfaces to meet more scene expansion needs.Supports HDMI high-definition output and USB data transfer.

11.Flexible installation supports multiple installation methods.Supports various installations such as desktop, wall mounted, cantilever, boom, and louver horizontal.

For more details

Desktop installation
Embedded installation
Suspension arm installation
Wall mounted installation
Louver horizontal installation
Cantilevered installation

Widely applicable scenarios.

Suitable for all industries and professions:

Industrial sector
smart city
Transportation and aviation
Exhibition Hall Clubhouse
monitor system
medical technology

PC Fanless Quick Details

Display	Model	BGDR-19	Size	19 inch
	Screen type	LED LCD screen	Backlight type	E-LED
	Display area	376.3(H)×301(V)mm	Resolution	1280×1024（SXGA）
	brightness	350cd/m²	Response time	6.5 ms
	Contrast	1000:1	Colour gamut	60% NTSC (CIE1931)
	Visual Angle	89/89/89/89 (Min.)(CR≥10)	Working life	>60000H
Android system (Optional)	chip	RK3568	CPU	Quad-core 64-bit Cortex-A55， Main frequency up to 2.0GHz
	GPU	ARM G52 2EE	NPU	Supports 1T computing power
	System support	Android 11.0	Random access memory	2G+16GB
	Motherboard interface	DC、TYPE-C、USB3.0、USB2.0*2、RJ45、HDMI OUT、Headset holder (rear SIM card holder）	Network	Support Gigabit Ethernet, 4G mobile network, WIFI2.4, BT-4.2(optional WIFI5.8, BT-5.0)
Windows system (Optional)	Chip	Intel	CPU	Core i5-3 generation
	Random access memory	4G DDR3（Optional）	Hard disk memory	128G SSD(Optional）
	Motherboard interface	DC、HDMI、VGA、USB2.0上、USB3.0下、USB2.0与LAN CO-LAY、LAN、HP OUT、MIC IN
Body extension interface	Android: TTL serial port (optional RS232)\ WIFI Windows:RS232*2 (Optional RS485)\WIFI\ Dual network port optional
Touch screen parameters	Input mode	Finger input	Touch points	10 point touch
Touch screen parameters	Response time	≤15ms	Positional accuracy	More than 90% of the touch area is ±2mm
Tractor parameter	Bare machine size (L * W * H)	453(H)×375.5(W)×72.8(D)mm	Shell material (face frame/back shell)	Aluminum alloy/sheet metal
	Shell color (face frame/back shell)	Black/cold grey	Switching power supply	AC100-240V~(+/-10%),50/60Hz adapter
	Power port	DC 12V / 5A/7A	Operating temperature	-10°C ～ 60°C
	Storage temperature	-20°C ～ 70°C	Accessory	1、Product specification1； 2、Power cord 1； 3、Warranty card1； 4、Certificate 1； 5、WIFI head 1; 6、Wall hanging plate + wall hanging screws 1 set
Product certification	CCC, Energy-saving Certification, Environmental System Certification
