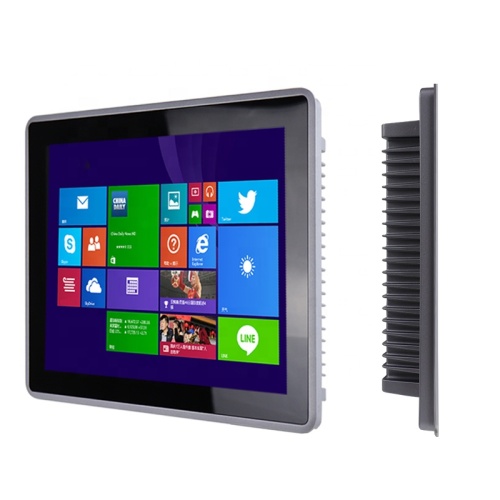

Ip65 Waterproof Industrial Computer PC

Basic Info

Brand: YCL TOUCH

Certification: reach, Ul, Rohs

Types Of: Panel Pc

Place Of Origin: China

Additional Info

Packaging: Foam and carton box.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Port: Shen Zhen

Product Description

small industrial pc Details Images

Industrial Computer advantage

1、10 point capacitive touch, high sensitivity, 24 hours continuous operation.

2、Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.

pc fanless Product Description

1.9 Characteristics：

Independent Research and Development

IP65 dustproof and waterproof

Rich interfaces

high low temperature

EMI/EMC anti-interference

Accurate touch control

Provide SDK

High quality SMT technology

Flexible installation

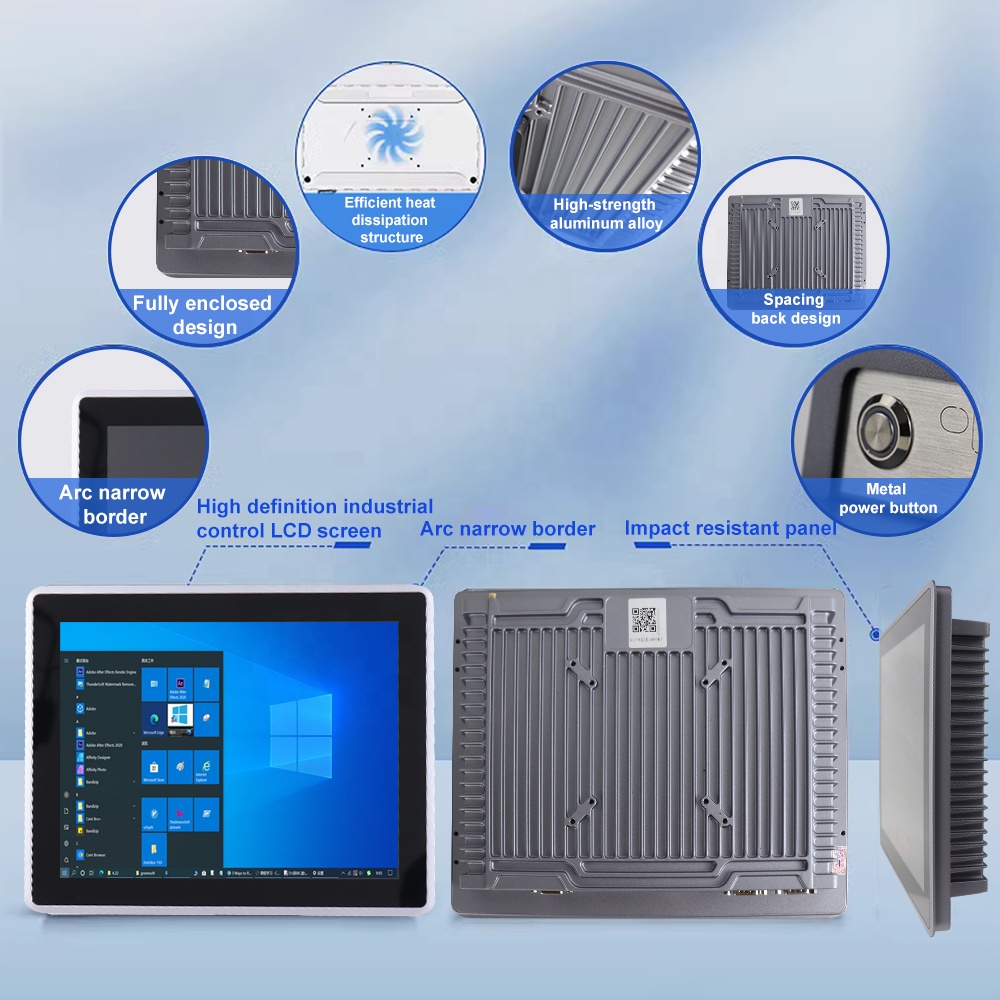

2. Appearance:

Fashionable aesthetic design with a strong sense of technology.Integrating aesthetics, technology, and multiple applications into an intelligent supporting equipment widely applicable in industry and commerce.

3.Screen:High definition industrial control LCD screen+High specification touch screen.Better display effect, more precise and sensitive touch control

16.7M Dynamic colors,350cd/㎡brightness,Full View/Wide View viewing angle

Accurate touch control,LED backlit LCD screen, more sensitive touch and longer service life

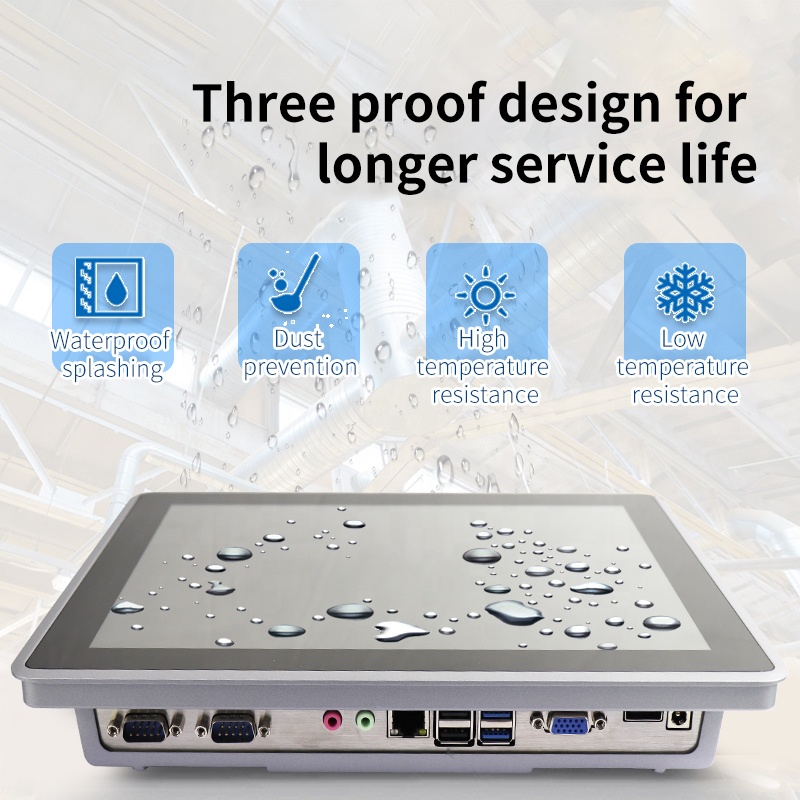

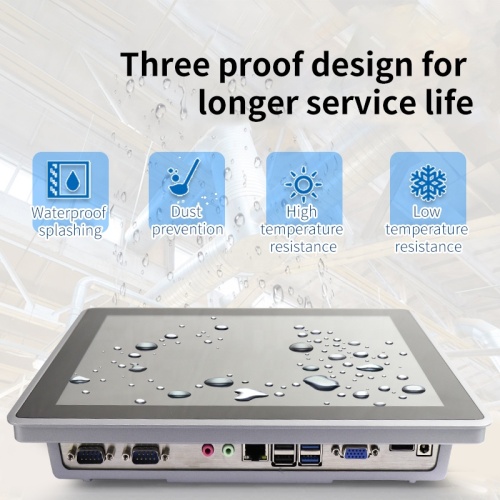

Front panel IP65 dust-proof, waterproof,and oil resistant, suitable for humid and oily industrial environments.

4.Heat dissipation:

No fan, efficient and silent heat dissipation.

Fully enclosed fanless design, noiseless operation, and more reassuring use.

5.Motherboard

Independently developed ARM architecture RK3568 industrial control motherboard.

RK3568 Cortex-A55 quad core processor with a main frequency of 2.0GHz.

6.ARM architecture industrial grade motherboard

RK3568, Cortex-A55 quad core processor Main frequency 2.0HZ

Anti interference/anti-static

Anti interference: meets EMI/EMC standards

ESD: contact voltage 4KV,air voltage 8KV

High quality SMT technology

Imported SMT SMT mounting machine/solder paste, strict production process, stable operation, efficient heat dissipation,and non meltiing adhesive.

System customization upgrade

Standard configuration: Android 11.0 system,supporting system customization,providing multiple upgrade methods such as remote and TF card.

7.Provide a comprehens SDK toolkit to support the development of upper level application apps.

Support Android system customization, provide system call interface API reference code, support self-developed APP.

8.Performance

Strong performance 24/7 uninterrupted and stable operation.

Adopting industrial grade motherboards to meet industrial grade performance requirements, with the ability to operate continuously and stably 24 hours a day, with a low failure rate.

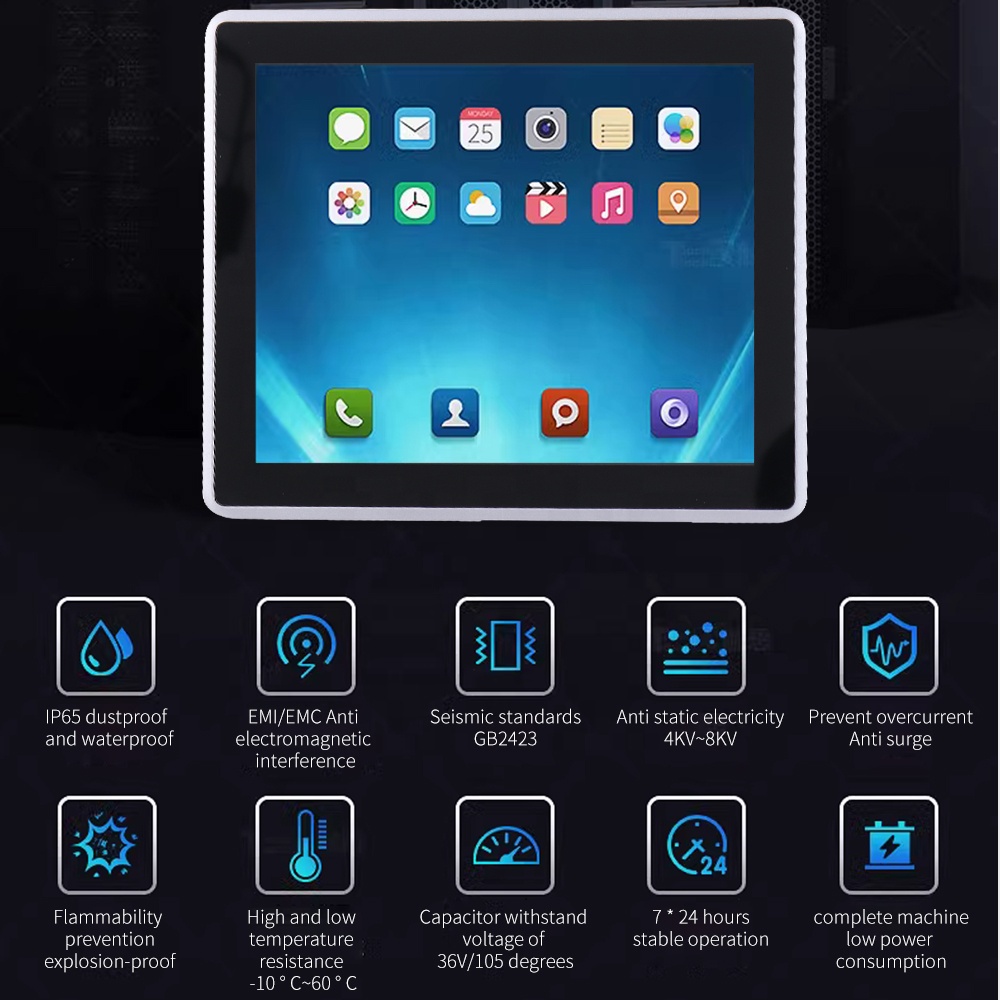

Features:

IP65 dustproof and waterproof

EMI/EMC Anti electromagnetic interference

Seismic standards GB2423

Anti static electricity 4KV-~8kV

Prevent overcurrent Anti surge

Flammability prevention explosion-proof

High and low temperature resistance －10°℃~60°℃

Capacitor withstand voltage of 36V/105 degrees

7*24 hours stable operation

complete machine low power consumption

9.Interface

Preset multiple interfaces to meet more scene expansion needs.

Supports HDMI high-definition output and USB data transfer.

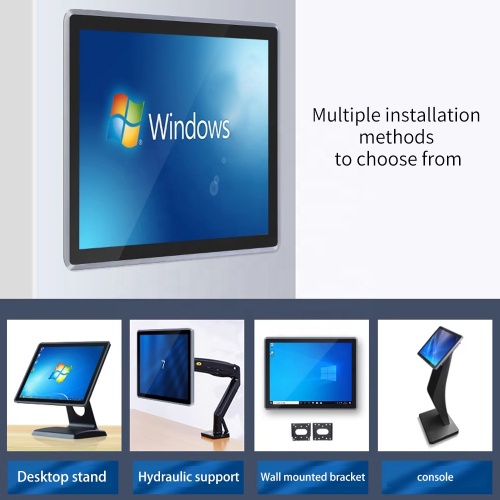

10.Install

Flexible installation supports multiple installation methods.

Supports various installations such as desktop,wall mounted, cantilever, boom, and louver horizontal.

Product application scenarios

Small industrial pc Quick Details

Display	Model	BGDR-15	Size	15 inch
	Screen type	LED LCD screen	Backlight type	E-LED
	Display area	304.1(H)×228(V)mm	Resolution	1024*768（SXGA）
	Brightness	350cd/m²	Response time	8ms
	Contrast	1200:1	Colour gamut	60% NTSC (CIE1931)
	Visual Angle	89/89/89/89 (Min.)(CR≥10)	Working life	>60000H
Android system (Optional)	Chip	RK3568	CPU	Quad-core 64-bit Cortex-A55， Main frequency up to 2.0GHz
	GPU	ARM G52 2EE	NPU	Supports 1T computing power
	System support	Android 11.0	Random access memory	2G+16GB
	Motherboard interface	DC、 TYPE-C、USB3.0、 USB2.0*2、 RJ45、 HDMI OUT、 Headphone holder (back SIM card holder)	Network	Support Gigabit Ethernet, 4G mobile network, WIFI2.4, BT-4.2(optional WIFI5.8, BT-5.0)
Windows system (Optional)	Chip	Intel	CPU	Core i5-3 generation
	Random access memory	4G DDR3（Optional）	Hard disk memory	128G SSD(Optional）
	Motherboard interface	DC、HDMI 、VGA、 USB3.02、 USB2.02 (optional LAN2)、 LAN、 HP OUT、 MIC IN
Body extension interface	Android: TTL serial port (optional RS232)\ WIFI Windows:RS232*2 (Optional RS485)\WIFI\ Dual network port optional
Touch screen parameters	Input mode	Finger input	Touch points	10 point touch
Touch screen parameters	Response time	≤15ms	Positional accuracy	More than 90% of the touch area is ±2mm
Tractor parameter	Bare machine size (L * W * H)	346(H) x 271(W) x 48(D)mm The thinest 3mm	Shell material (face frame/back shell)	Aluminum alloy/sheet metal
	Shell color (face frame/back shell)	Black/cold grey	Switching power supply	AC100-240V~(+/-10%),50/60Hz adapter
	Power port	DC 12V / 5A/7A	Operating temperature	-10°C ～ 60°C
	Storage temperature	-20°C ～ 70°C	Accessory	1、Product specification1； 2、Power cord 1； 3、Warranty card1； 4、Certificate 1； 5、WIFI head 1; 6、Wall hanging plate + wall hanging screws 1 set
Product certification	CCC, Energy-saving Certification, Environmental System Certification
