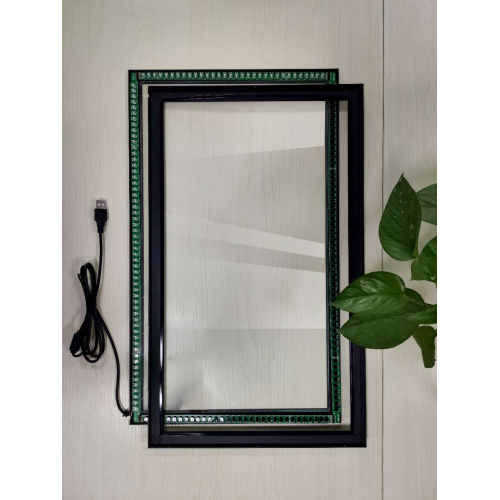

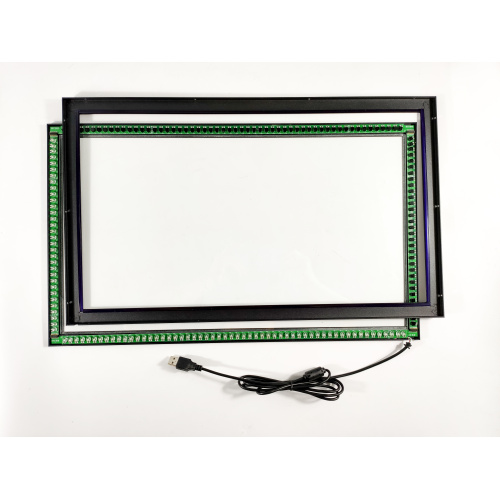

21.5 inch waterproof IR multi touch Screen

Basic Info

Brand: YCL TOUCH

Certification: Rohs, Ccc, Iso9001, Ce

Colour: Black

Is There A Package: Yes

Series: For Business

Flatness Ratio: 16:9, 16:10

After-sales Service: Call Center And On-Line Technical Support

Product Status: New

Types Of: Infrared

Interface Type: Usb

Place Of Origin: China

Size: 21.5inch

Additional Info

Packaging: Carton + foam to protect products during transportation. According to the buyer's demand, wooden cases can also be provided to better protect the product.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000 Piece/Pieces per Day

Port: Shenzhen

Product Description

China's exclusive R&D, production and sales one-stop IR touch high-tech enterprise

Support factory visiting, OEM & ODM service

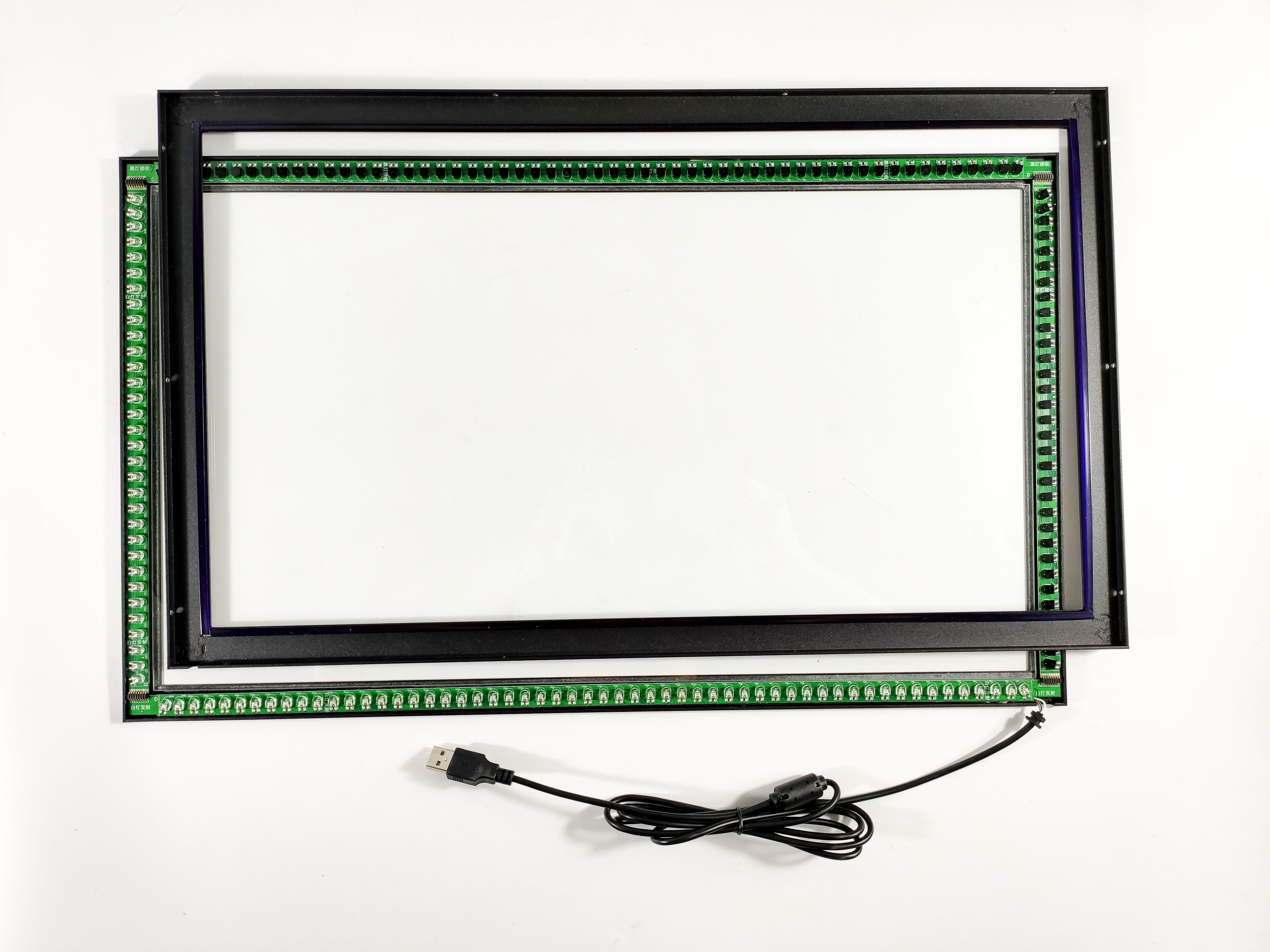

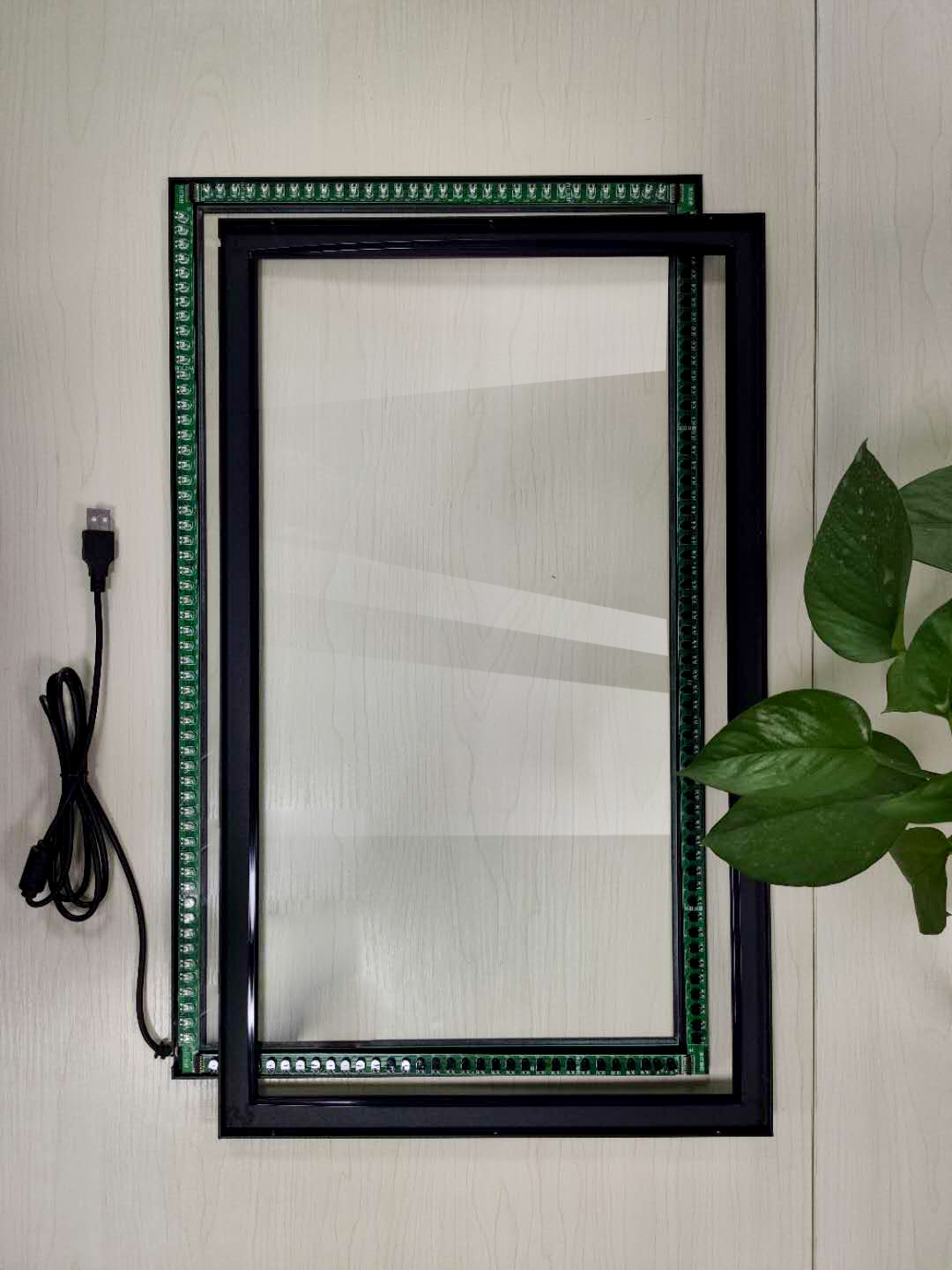

ir touch overlay Details Images

1.High touch precision and good stability.
2.Responsive, no disconnection, no ghosting or no drift, support 10 touch points.

3.Anti-light, dustproof, waterproof, anti-riot, scratch resistant and long service life.

4.Aluminium alloy frame, strong, durable and rust resistant.

5.support Gesture recognition.
6.High suitability free from currency, voltage, and static interference due to the complicated environment.

7.Good waterproofing：It can effectively prevent moisture from entering the inside, and can work normally even in humid environments or when accidentally exposed to liquids.

8.Precise touch response：Infrared sensing technology ensures that touch operations can be accurately recognized, and every click, swipe and other operations of the user can be accurately feedback.

9.Durability：It is not only waterproof, but also has good anti-wear performance, can withstand a certain degree of external impact, and prolong the service life.

10.Excellent optical performance：The light transmittance of the screen is high, the display effect is clear, and the infrared induction does not affect the visual presentation of the screen, providing a good visual experience.

11.Wide range of adaptability：Whether it is indoor or outdoor, it can be applied to a variety of scenarios where waterproof is required, such as restaurants, information query equipment next to swimming pools, etc.

12.Easy to clean and maintain：The waterproof surface can be easily wiped with a damp cloth to clean up stains and dust, and the touch screen will not be damaged by cleaning.

Infrared Touch Frame Quick Details

Brand Name:	YCL Touch	Screen Size:	21.5”
Glass material	Tempered glass	Min identification diameter	8*8mm
Technology:	IR Technology	Interface Type:	USB
Resolution:	32768x32768	Ratio	16:10;4:3;16:9
Place of Origin:	Guangdong, China	Touch Times:	Unlimited times
Input Method:	Any opaque object	Response time:	≤10ms
Function:	Zoom in and out,Click,Draw	Operating System:	Windows/Andriod/MacOS/Linux
Touch points:	10 points	Warranty:	12 months
Application:	Teaching,Conference,Business	lnstallation:	USB cable plug-and-play, free-driver

IR Touch Panel Product Description

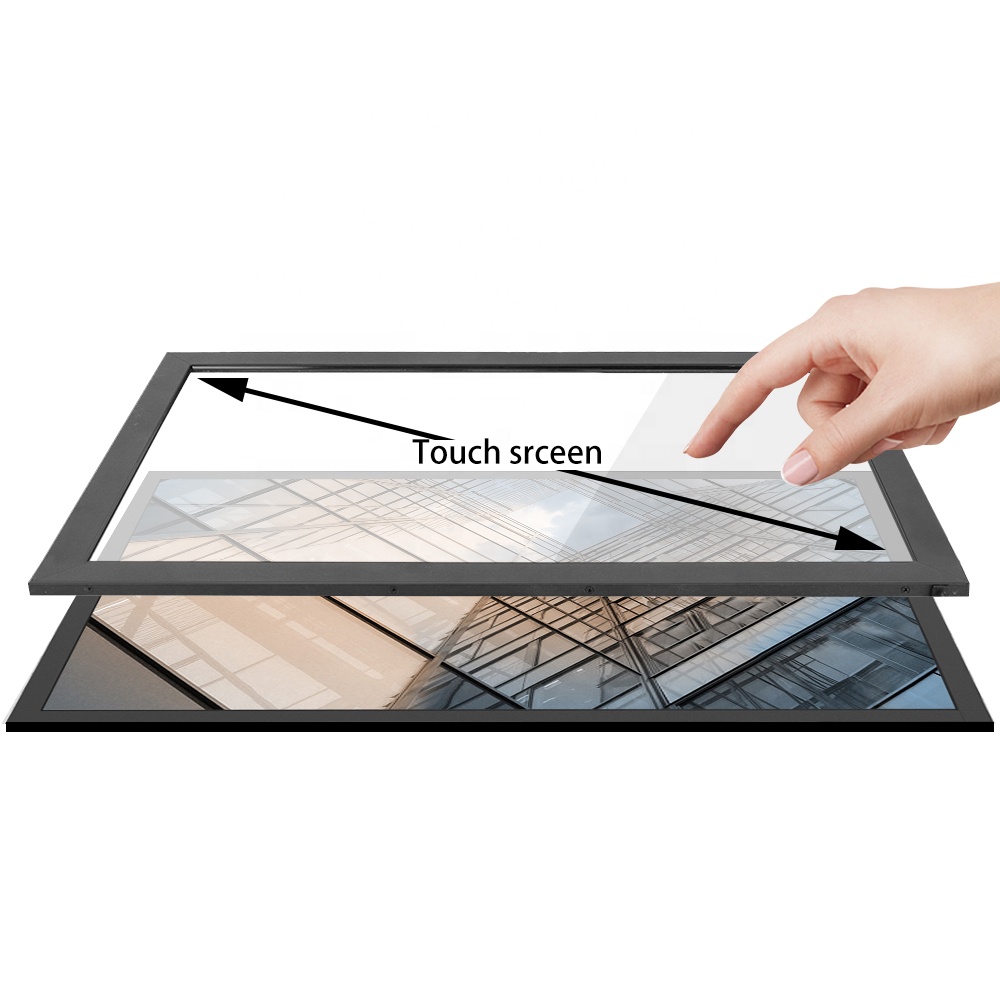

1.Turn your display into a touch screen.it has waterproof,infrared touch screen,multi touch,ultra-narrow bezel and fast response.

2.6 Major characteristics:

20-64 points multi touch,
narrow bezel,
high-precision,
selected led tube cores,
aluminum alloy material,
quick response.

3.Adopt independent research and development of multi- anglehybrid scanning technology to identify multi-touch random points without drift, and each touch doesn't interfere with each other.

4.Its frame is aluminum alloy material.Its features are strong ,durable and non rusting.

5.More details with unique craftsmanship experience every aspect of a designer .everywhere is meticulously designed.socket position plug in the right way.different sizes of edges and corners will vary.

6.plug and play aluminum alloy plug without driver
