Wall mounted high resolutionbook document camera scanner

Basic Info

Brand: YCL TOUCH

Certification: reach, Ul

Product Status: Stock

Types Of: Document Scanner

Scanning Element Type: Cmos

Color Point: 24 Bit

Interface Type: Usb

Place Of Origin: China

Warranty Period (years): 1-Year

After-sales Service: Return And Replacement, Repair

Additional Info

Packaging: Packing accessories : Warranty card, Certificate, 4-meter USB cable, writing pad Carton + foam to protect products during transportation. According to the buyer's demand, wooden cases can also be provided to better protect the product.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Port: S,h,e

Product Description

Our Advantages

Over 10 years of experience R&D, Production and Sales one-stop solution manufacturer. Strong R&D capacity, Good quality control, Competitive price, and Fast delivery time.

book to pdf scanner Quick Details

effective pixels	≥5/8/13/16 million pixels	Focus Mode	Auto Focus
definition	≥1500 lines	colour balance	auto
frame rate	≥15 frames（4656*3496） ≥30 frames（1920X1080）（choosable）	Shooting range	A3 altitude：31cm

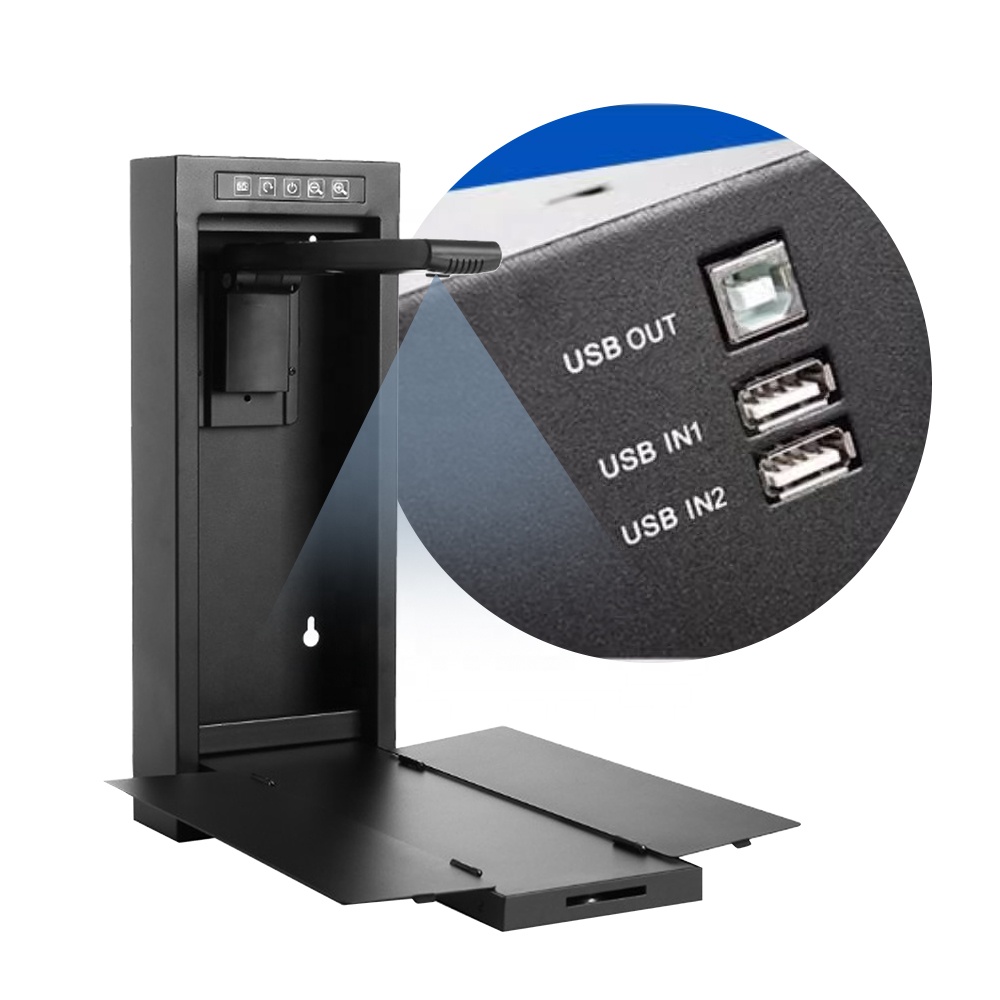

Shooting direction	Horizontal, vertical (optional)	interface function	USB output 3.0B port 1\A port 2.02(USB expansion function)
output format	USB2.0 MJPG/YUY2	Physical key function	photograph \ rotate \ One click open\ zoom \ enlarge
Light control	Wall touch three-stage cycli control	record	Built-in high sensitivity digital microphone
power supply	USB 5V	power	< 2W
Product Net Weight	3KG	Packaging / gross weight	rough weight（3.5KG）
packing specification	122246cm （ width heightLength )	Product Packaging	Manual, warranty card, Certificate, 4 m A/B cable, mounting screw pack
bottom structure	Split triple fold	Floor bearing	< 5KG

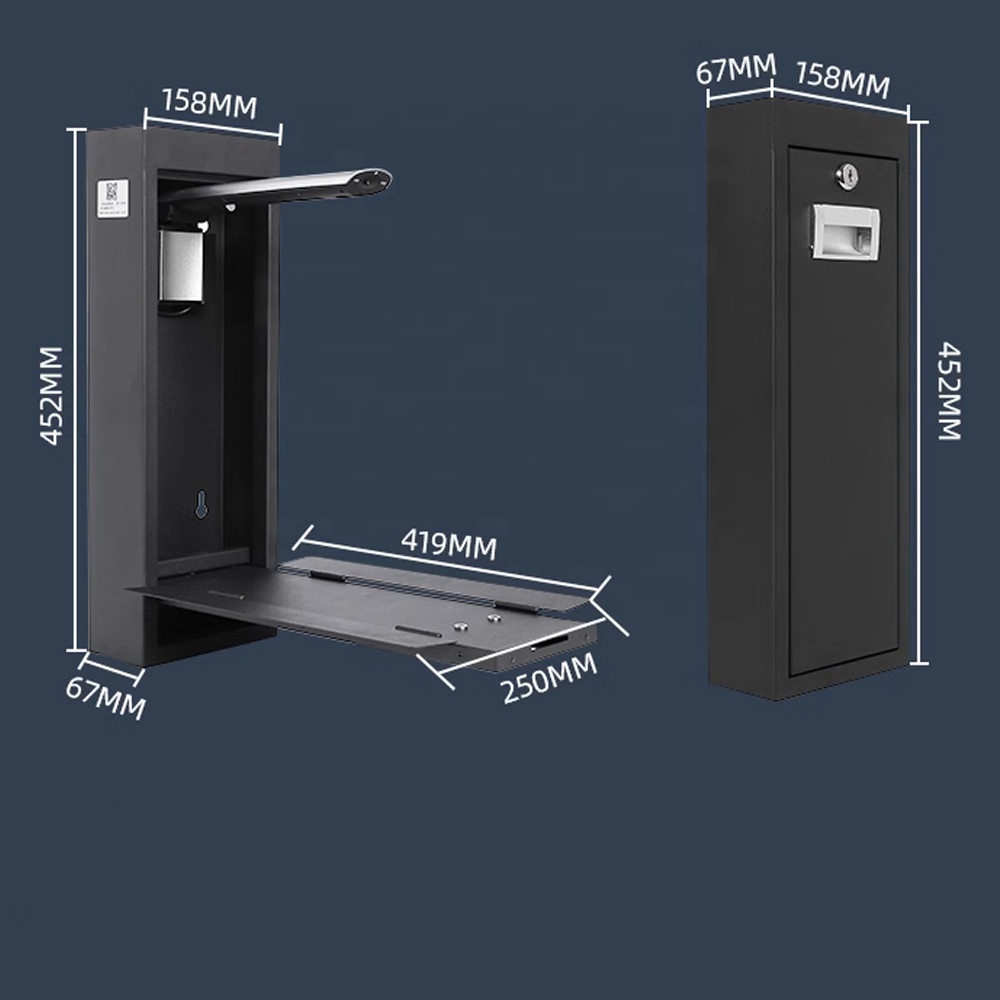

Box metal material	Sheet metal (thickness 1.0MM)	Fuselage specification	16743cm(width * thickness *height)
unfold size	294243cm (width * thickness *height)	Appearance technology	Oxidized black surface treatment
software	Teaching booth software	Software Language	English
software function	freeze,Please refer to the software description for comments, comparison on the same screen, photos, 360-degree rotation, etc

handheld book scanner Product Description

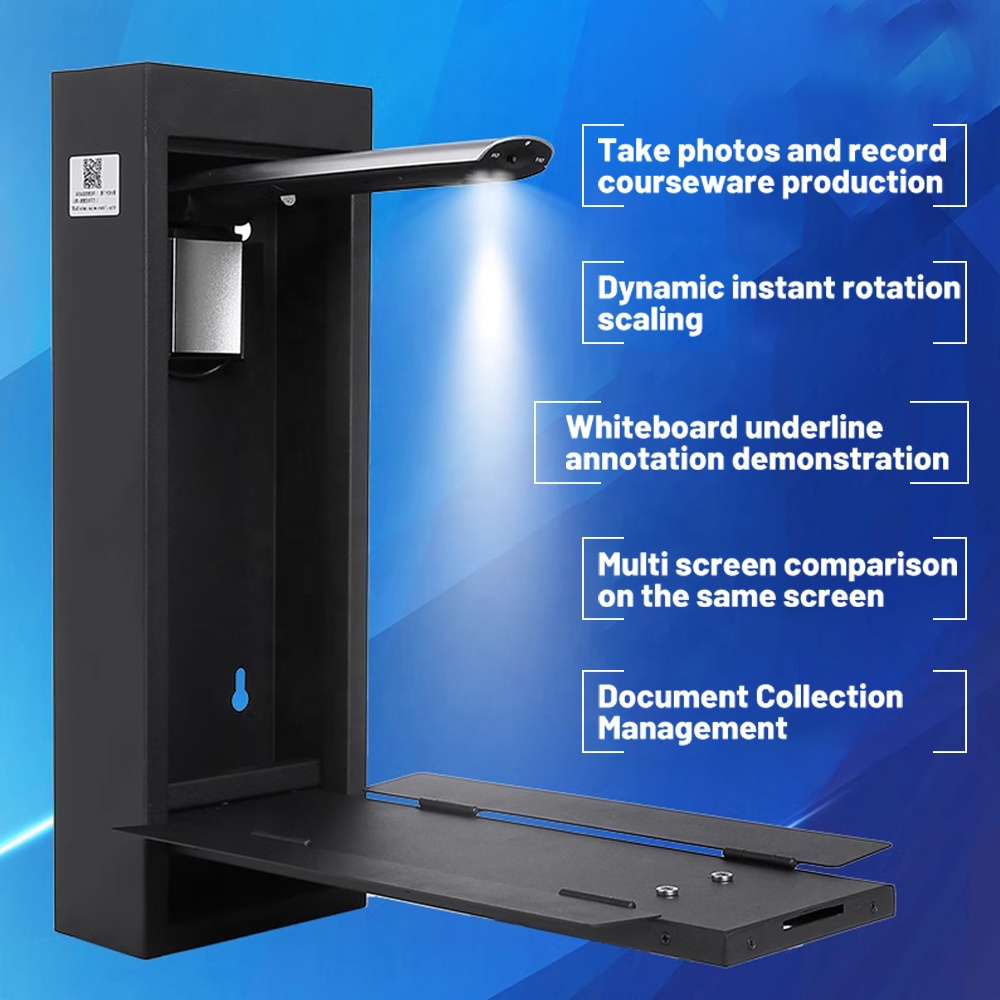

1.Multimedia high-definition digital display platform:

Take photos and record courseware production
Dynamic instant rotation scaling
Whiteboard underline annotation demonstration
Multi screen comparison on the same screen
Document Collection Management

2.book page scanner Features:

Delivery software
A3 shooting
HD lens
Folding design
4-meter USB cable
HD lens
LED fill light
Quick Scan
QR code identification

3.Using a 5/8/13/16 million pixel fixed focus

high-definition camera

Professional CMOS photosensitive lens with high image resolution,

making the display clearer and smoother.

LED fill light

Long lifespan 10 bright LED lights with side lenses to solve reflective problems

and adapt to low light environments for normal use.

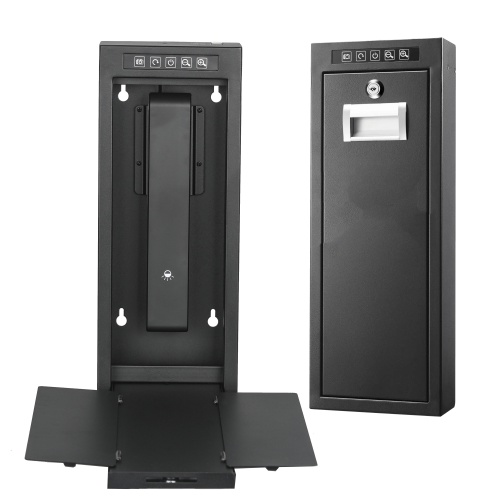

Wall mounted box design

Made of all metal cold rolled steel, with a narrow and thin box body and a three fold

widened bottom plate, it is convenient and lightweight for storage.

4.5/8/13/16 megapixel high-definition lens. Using a 5/8/13/16 megapixel pixel high-definition lens, fast shooting and high-definition display with multiple resolutions to choose from, synchronous real-time dynamic display is clear and smooth.

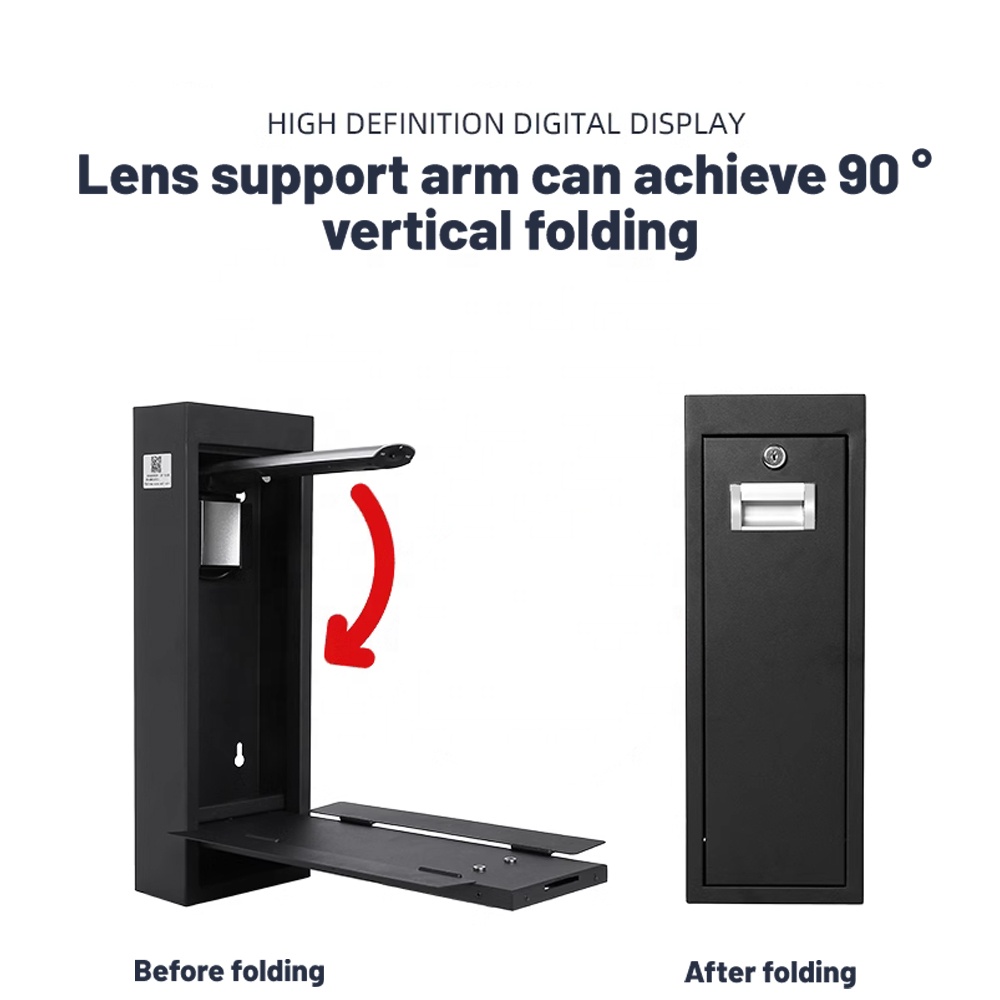

5.Space saving and dust prevention. Lens support arm can achieve 90° vertical folding. HIGH DEFINITION DIGITAL DISPLAY.
