Industrial Fanless Touch Computer - BGDR-12.1 with RK3568

High-Performance Industrial Fanless Touch Computer – BGDR-12.1

The BGDR-12.1 is a ruggedized, fanless industrial touch computer engineered for continuous operation in demanding environments. Designed by YCL TOUCH, a trusted manufacturer with over a decade of expertise in R&D and production, this compact yet powerful system delivers reliable performance across multiple industries including manufacturing, logistics, automation, and retail. With an IP65-rated enclosure, advanced ARM-based RK3568 processor, and customizable interfaces, it’s ideal for applications requiring durability, precision, and long-term stability.

Key Features

• 10-Point Capacitive Touchscreen: High sensitivity ensures accurate input even during extended use, making it perfect for interactive control panels and kiosks.

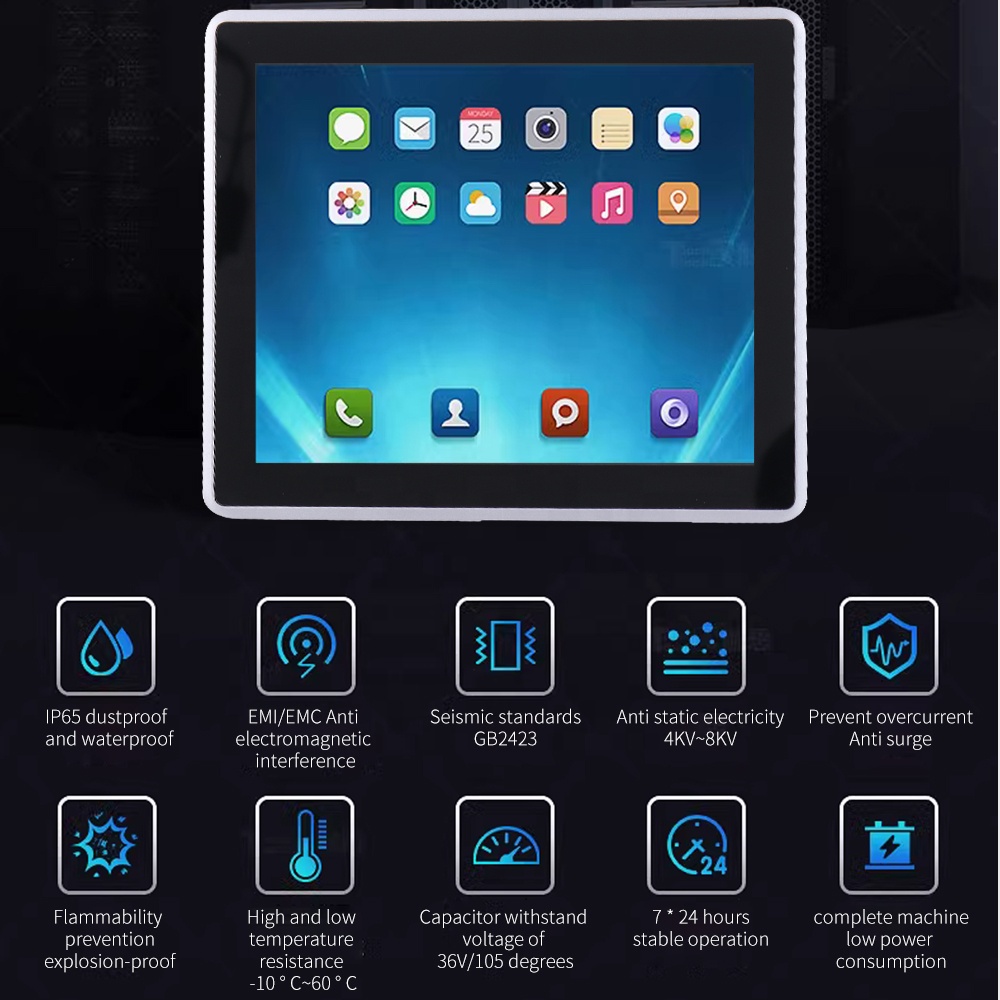

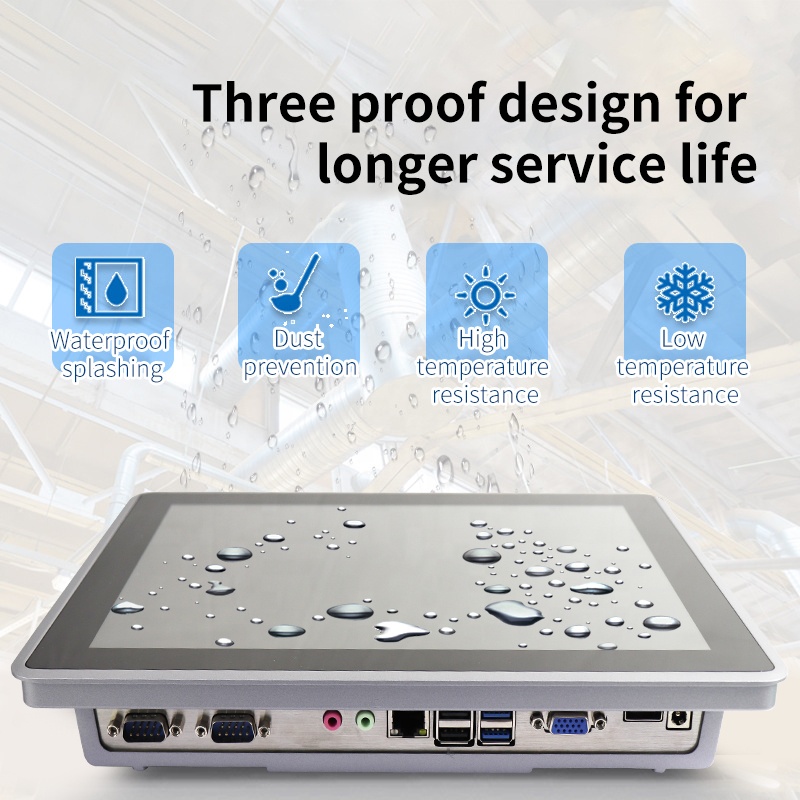

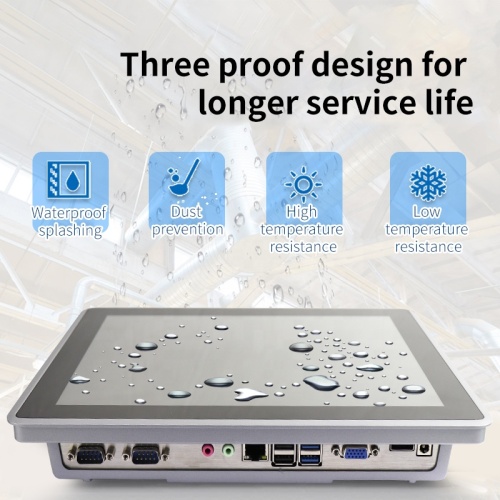

• IP65 Dustproof & Waterproof Protection: Resistant to harsh conditions like oil, moisture, and particulates—ideal for factory floors or outdoor installations.

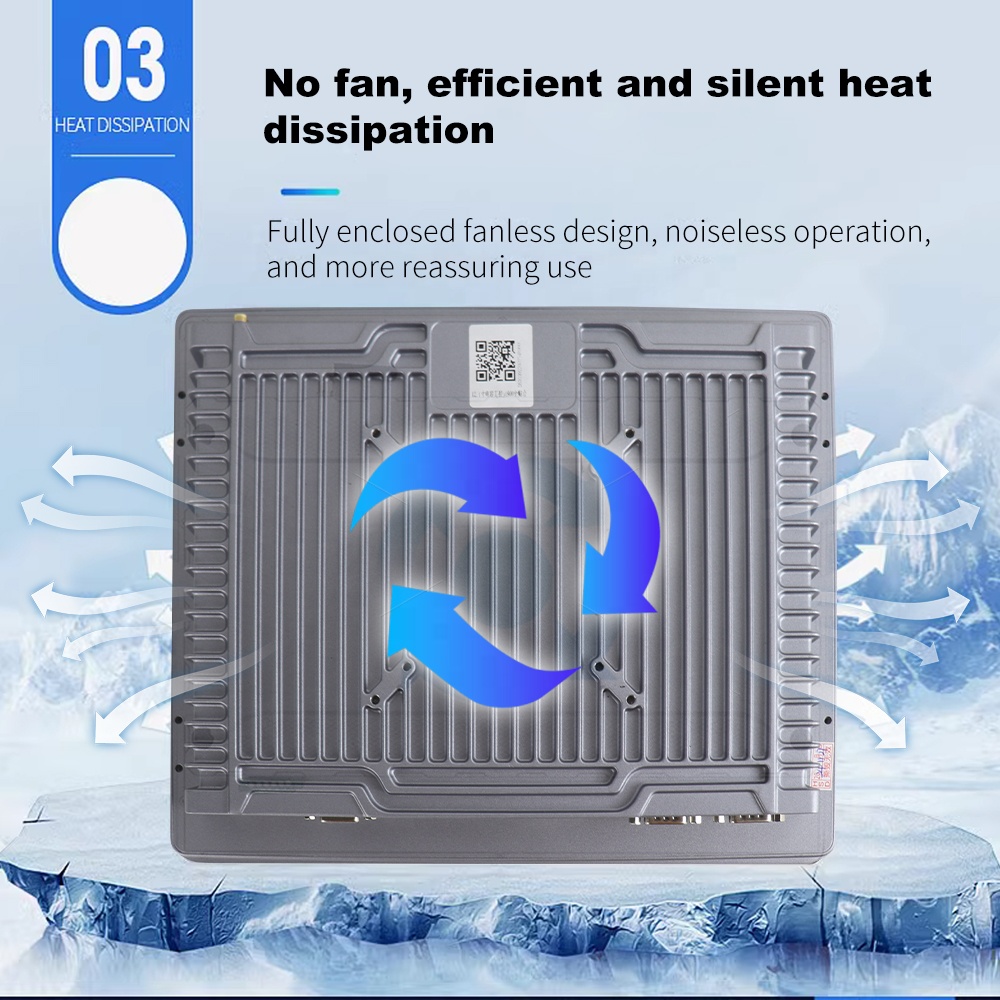

• Fanless Design: Silent, maintenance-free cooling using passive heat dissipation technology ensures uninterrupted uptime in noise-sensitive settings.
• Industrial-Grade Components: Built on the RK3568 quad-core Cortex-A55 SoC (up to 2.0GHz), with EMI/EMC compliance and ESD protection up to 8kV air voltage.

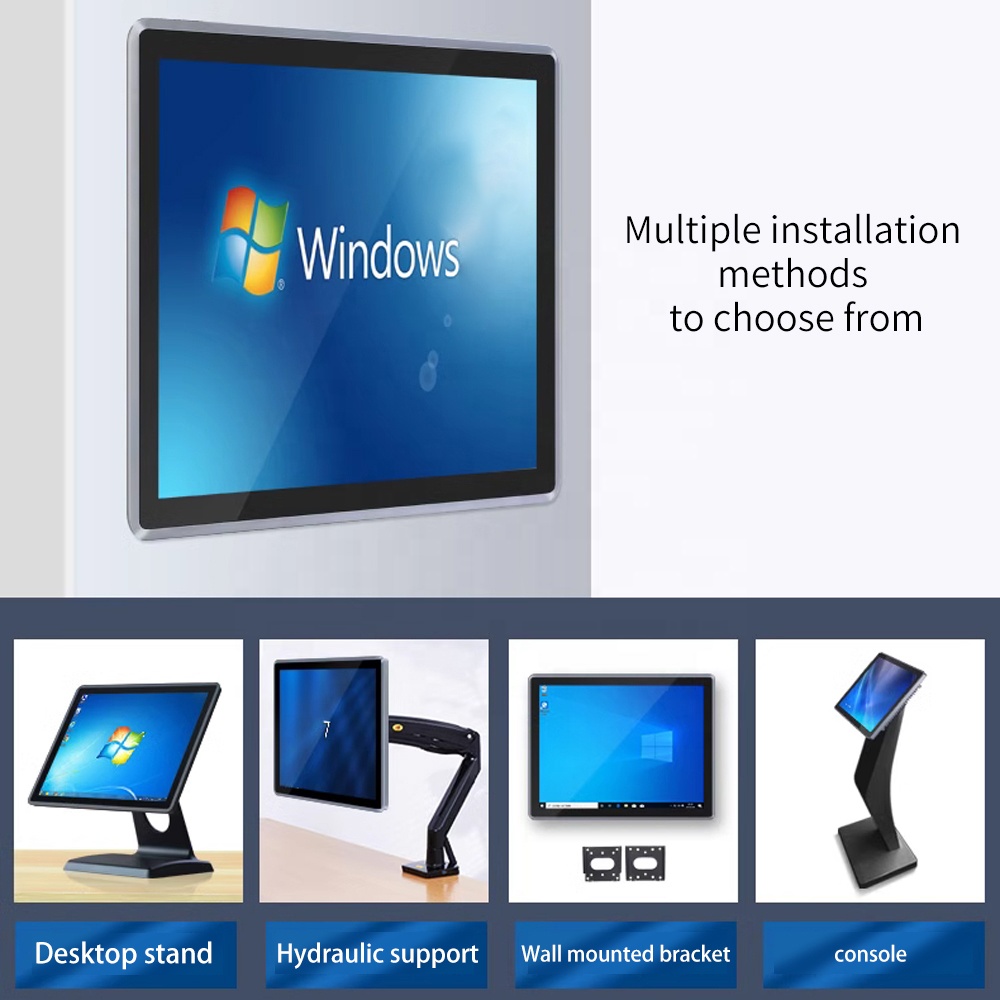

• Flexible Installation Options: Supports wall mounting, desktop placement, cantilever, boom, or louver configurations for versatile deployment.
• Customizable Operating Systems: Choose between Android 11.0 or Windows systems, with options for SSD storage, dual LAN ports, and optional 4G/WiFi 5.8 connectivity.
• Rich I/O Interfaces: Includes HDMI output, USB 3.0/2.0 ports, serial communication (RS232/RS485), and GPIO expansion for integration into legacy and modern systems.
• Extended Temperature Range: Operates reliably from -10°C to +60°C, suitable for both cold storage facilities and hot industrial zones.
• SDK Support for App Development: Comprehensive software development toolkit enables custom application creation tailored to specific business needs.

Detailed Description

This industrial-grade touch computer combines cutting-edge hardware with robust engineering principles. The 12.1-inch Full HD display offers vivid visuals with 350 cd/m² brightness, wide viewing angles (89°/89°/89°/89°), and a 1000:1 contrast ratio. Its LED-backlit LCD screen provides consistent clarity under varying lighting conditions while maintaining low power consumption. The capacitive touchscreen supports multi-touch gestures with response times under 15ms and positional accuracy within ±2mm across most of the surface area.

Powered by the RK3568 chipset, the unit features a 64-bit ARM architecture with integrated NPU supporting up to 1Tops AI computing power—ideal for edge-based machine vision, data processing, or IoT gateway functions. Whether configured with Android 11.0 (2GB RAM + 16GB storage) or Windows (with optional 4GB DDR3 RAM and 128GB SSD), users benefit from smooth multitasking and secure boot capabilities. Additional protections include surge suppression, fire-resistant materials, and compliance with seismic standards GB2423 for vibration resilience.

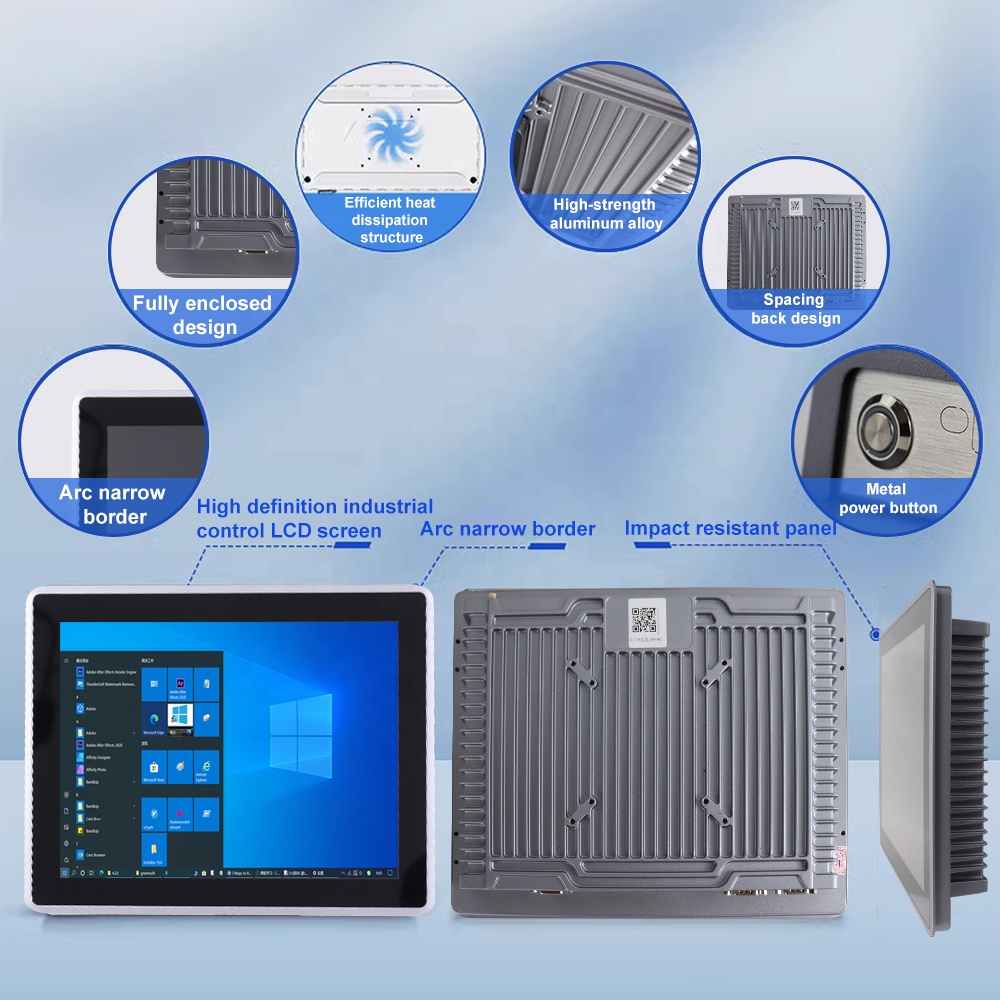

The chassis is constructed from aluminum alloy and sheet metal, offering excellent thermal conductivity and structural integrity. A wide operating temperature range (-10°C to +60°C) and storage tolerance (-20°C to +70°C) ensure operational continuity in extreme climates. Accessories include a DC adapter, mounting bracket, wall screws, warranty card, certification documents, and a Wi-Fi antenna—all packaged for easy setup and immediate deployment.

Use Cases & Applications

This fanless industrial pc excels in environments where reliability, durability, and minimal downtime are critical. Common applications include automated production lines, vending machines, point-of-sale terminals, smart agriculture monitoring stations, medical diagnostic equipment, public transportation information displays, and remote asset management systems. It's particularly suited for industrial automation projects that require ruggedized touch control without the risk of mechanical failure from fans or moving parts.

Customer Feedback Highlights

Users frequently praise the device’s exceptional build quality, especially its ability to function flawlessly in dusty workshops and humid food processing plants. Many highlight the ease of integrating third-party sensors via the available RS232 and GPIO interfaces, as well as the seamless performance when running custom-built apps using the provided SDK. Customers also appreciate the lack of audible noise due to the fanless design, which enhances user experience in quiet environments such as hospitals or offices.

Frequently Asked Questions

Can this unit run 24/7 without overheating? Yes, thanks to its passive cooling system and high-quality SMT assembly process, the BGDR-12.1 can operate continuously for years without degradation in performance or reliability.

Is there support for external storage or network expansion? Absolutely—the unit includes USB, HDMI, Ethernet, and optional dual LAN ports, allowing for scalable connectivity solutions in distributed systems.

What OS options are available? Both Android 11.0 and Windows versions are supported, with the option to customize firmware for specialized tasks such as barcode scanning, video surveillance, or real-time data logging.

How do I install it in different positions? The product comes with a universal mounting kit enabling installation on walls, desks, or vertical surfaces, ensuring flexibility across various workspace layouts.
