19 Inch Capacitive Industrial Touch Screen

Basic Info

Brand: YCL TOUCH

Warranty Period (years): 1-Year

Certification: Scoc, Rohs, Ul

Colour: Black

Is There A Package: Yes

Series: For Business

Flatness Ratio: 16:9

Product Status: New

Types Of: Capacitive

Interface Type: Usb

Place Of Origin: China

Additional Info

Packaging: Foam and carton box.

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 500 Piece/Pieces per Day

Port: Shen Zhen

Product Description

industrial pc Images

Industrial Computer advantage:

1、10 point capacitive touch, high sensitivity, 24 hours continuous operation.

2、The panel is dustproof, waterproof, anti-slip and anti-collision, high and low temperature anti-interference, anti-impact and anti-vibration.

3、Rich interface: can be customized to install serial port, USB, network port, Phoenix terminal, aviation interface, GPIO.

4、Android/Windows dual system optional, a variety of personalized installation methods.

5、Built-in anti-theft lock, security protection, multi-scenario application.

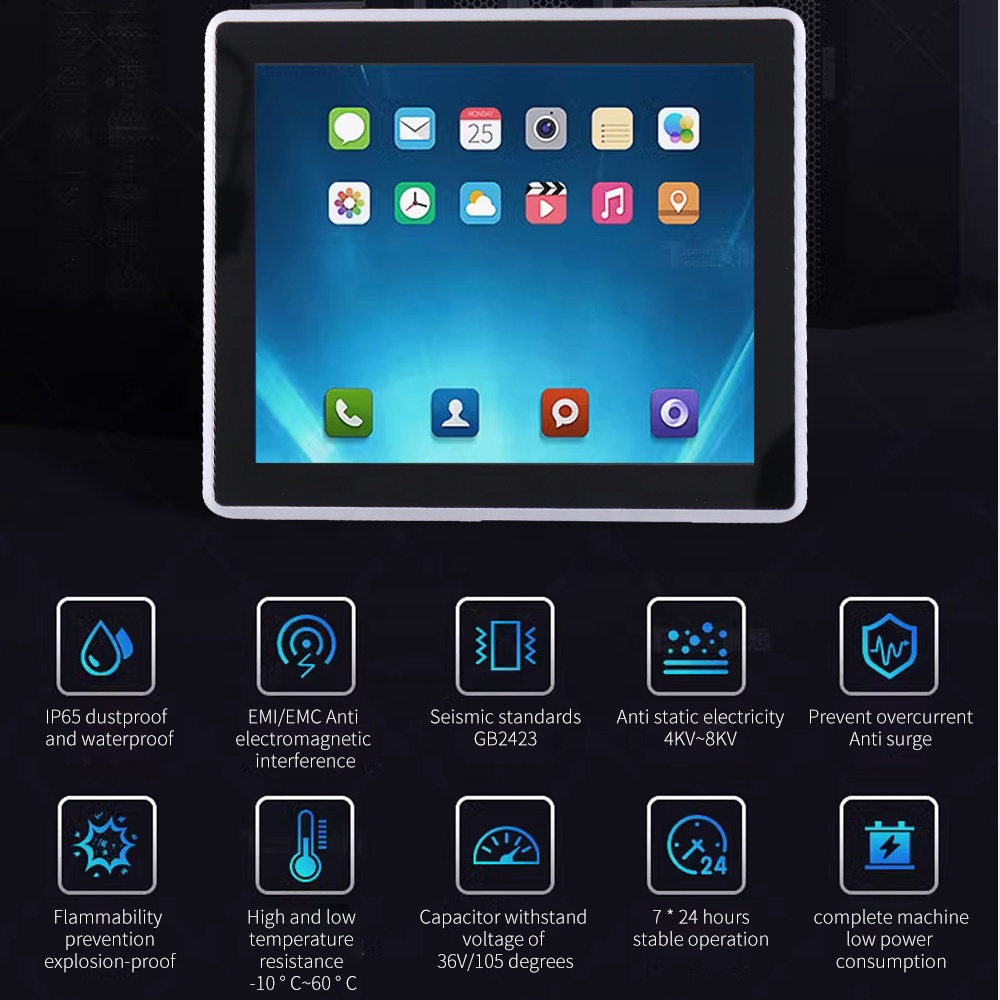

pc fanless Product Description:

1.9 Characteristics：

Independent Research and Development
IP65 dustproof and waterproof
Rich interfaces
high low temperature
EMI/EMC anti-interference
Accurate touch control
Provide SDK
High quality SMT technology
Flexible installation

2. Appearance:

Fashionable aesthetic design with a strong sense of technology.Integrating aesthetics, technology, and multiple applications into an intelligent supporting equipment widely applicable in industry and commerce.

3.Screen:High definition industrial control LCD screen+High specification touch screen.Better display effect, more precise and sensitive touch control

16.7M Dynamic colors,350cd/㎡brightness,Full View/Wide View viewing angle
Accurate touch control,LED backlit LCD screen, more sensitive touch and longer service life

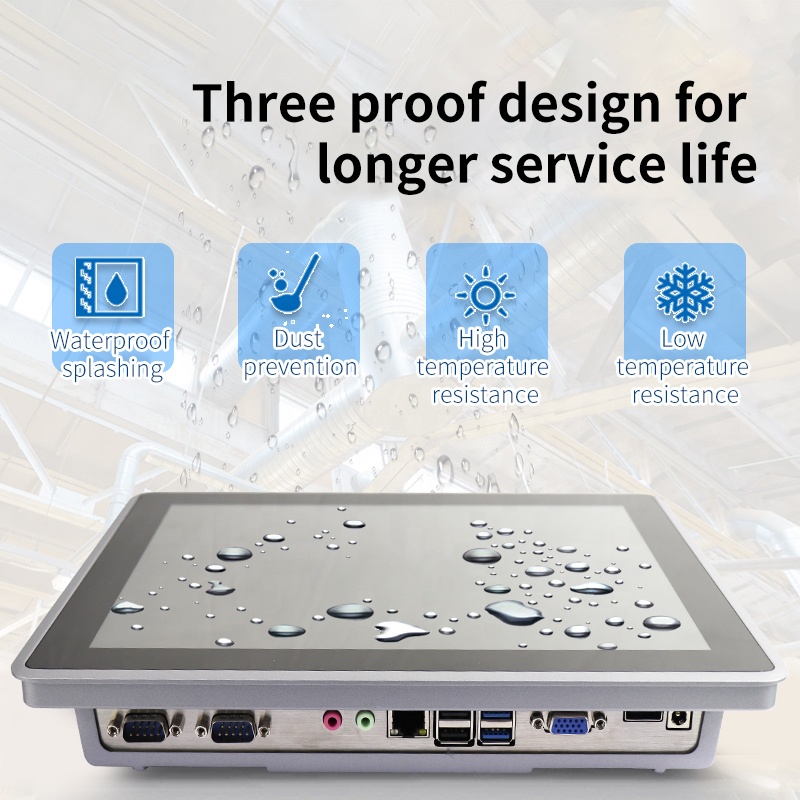

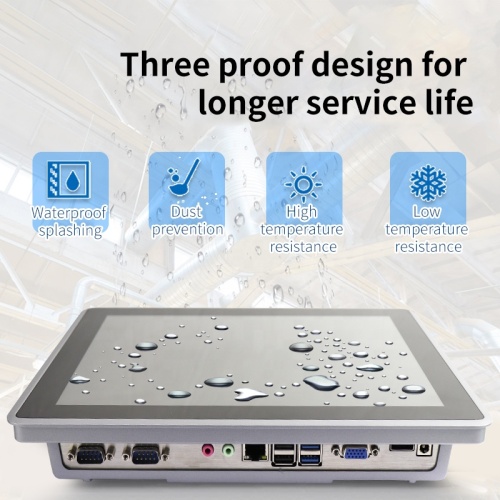

Front panel IP65 dust-proof, waterproof,and oil resistant, suitable for humid and oily industrial environments.

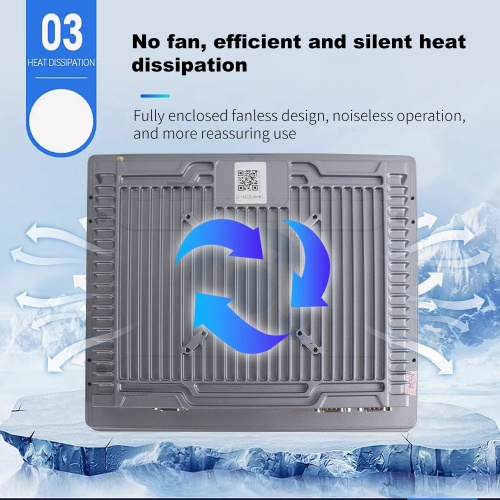

4.Heat dissipation:

No fan, efficient and silent heat dissipation.
Fully enclosed fanless design, noiseless operation, and more reassuring use.

5.Motherboard

Independently developed ARM architecture RK3568 industrial control motherboard.
RK3568 Cortex-A55 quad core processor with a main frequency of 2.0GHz.

6.ARM architecture industrial grade motherboard

RK3568, Cortex-A55 quad core processor Main frequency 2.0HZ
Anti interference/anti-static
Anti interference: meets EMI/EMC standards
ESD: contact voltage 4KV,air vol

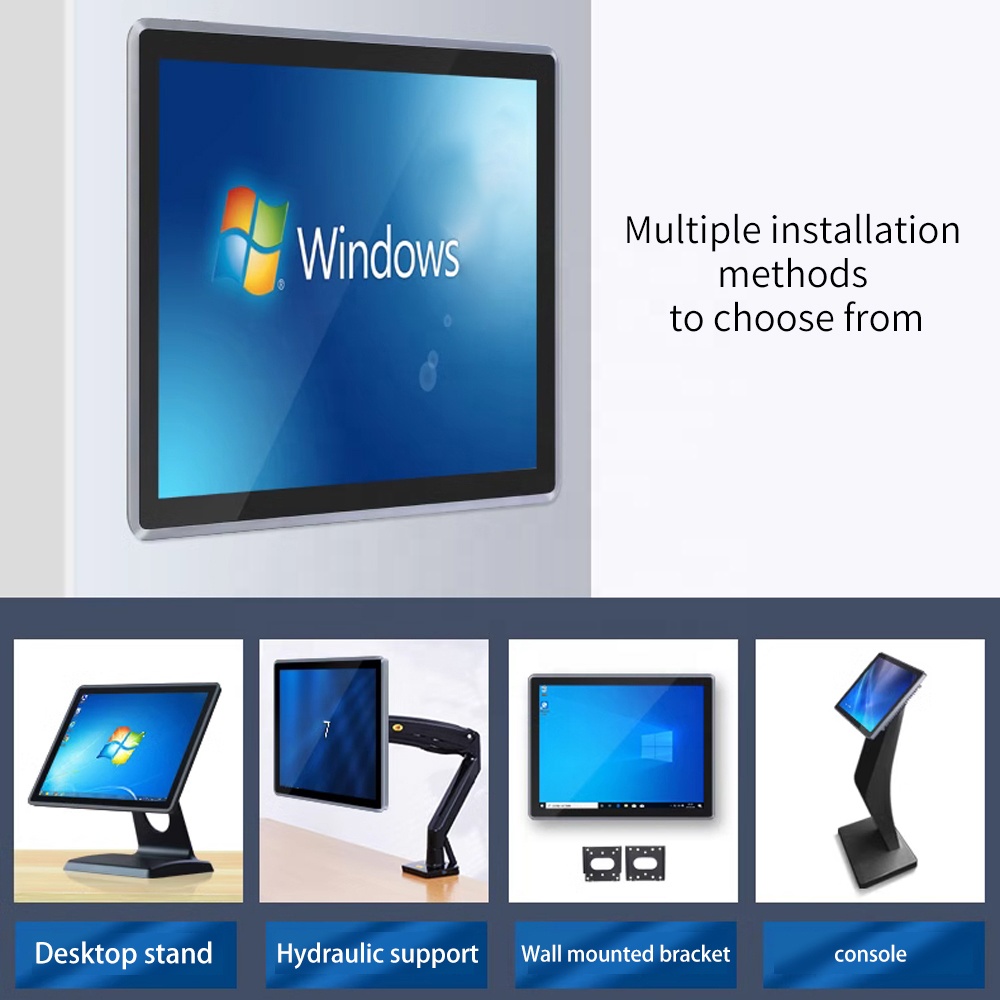

7INSTALL

Flexible installation supports multiple installation methods.
Supports various installations such as desktop,wall mounted, cantilever, boom, and louver horizontal.

Industrial PC Quick Details:

Display	Model	BGDR-19	Size	19 inch
	Screen type	LED LCD screen	Backlight type	E-LED
	Display area	376.3(H)×301(V)mm	Resolution	1280×1024（SXGA）
	Brightness	350cd/m²	Response time	8ms
	Contrast	1000:1	Colour gamut	60% NTSC (CIE1931)
	Visual Angle	89/89/89/89 (Min.)(CR≥10)	Working life	>60000H
Android system (Optional)	Chip	RK3568	CPU	Quad-core 64-bit Cortex-A55， Main frequency up to 2.0GHz
	GPU	ARM G52 2EE	NPU	Supports 1T computing power
	System support	Android 11.0	Random access memory	2G+16GB
	Motherboard interface	DC、 TYPE-C、USB3.0、 USB2.0*2、 RJ45、 HDMI OUT、 Headphone holder (back SIM card holder)	Network	Support Gigabit Ethernet, 4G mobile network, WIFI2.4, BT-4.2(optional WIFI5.8, BT-5.0)
Windows system (Optional)	Chip	Intel	CPU	Core i5-3 generation
	Random access memory	4G DDR3（Optional）	Hard disk memory	128G SSD(Optional）
	Motherboard interface	DC、HDMI 、VGA、 USB3.02、 USB2.02 (optional LAN2)、 LAN、 HP OUT、 MIC IN
Body extension interface	Android: TTL serial port (optional RS232)\ WIFI Windows:RS232*2 (Optional RS485)\WIFI\ Dual network port optional
Touch screen parameters	Input mode	Finger input	Touch points	10 point touch
Touch screen parameters	Response time	≤15ms	Positional accuracy	More than 90% of the touch area is ±2mm
Tractor parameter	Bare machine size (L * W * H)	424(H)×351(W)×48(D)mm The thinest 3mm	Shell material (face frame/back shell)	Aluminum alloy/sheet metal
	Shell color (face frame/back shell)	Black/cold grey	Switching power supply	AC100-240V~(+/-10%),50/60Hz adapter
	Power port	DC 12V / 5A/7A	Operating temperature	-10°C ～ 60°C
	Storage temperature	-20°C ～ 70°C	Accessory	1、Product specification1； 2、Power cord 1； 3、Warranty card1； 4、Certificate 1； 5、WIFI head 1; 6、Wall hanging plate + wall hanging screws 1 set
Product certification	CCC, Energy-saving Certification, Environmental System Certification
