Brand: YCL TOUCH
Certification: Fcc, Ce, reach
Packaging: Foam and carton box.
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 500 Piece/Pieces per Day
Port: Shen Zhen
Industrial Computer Product Description:
1.9 Characteristics：
Independent Research and Development

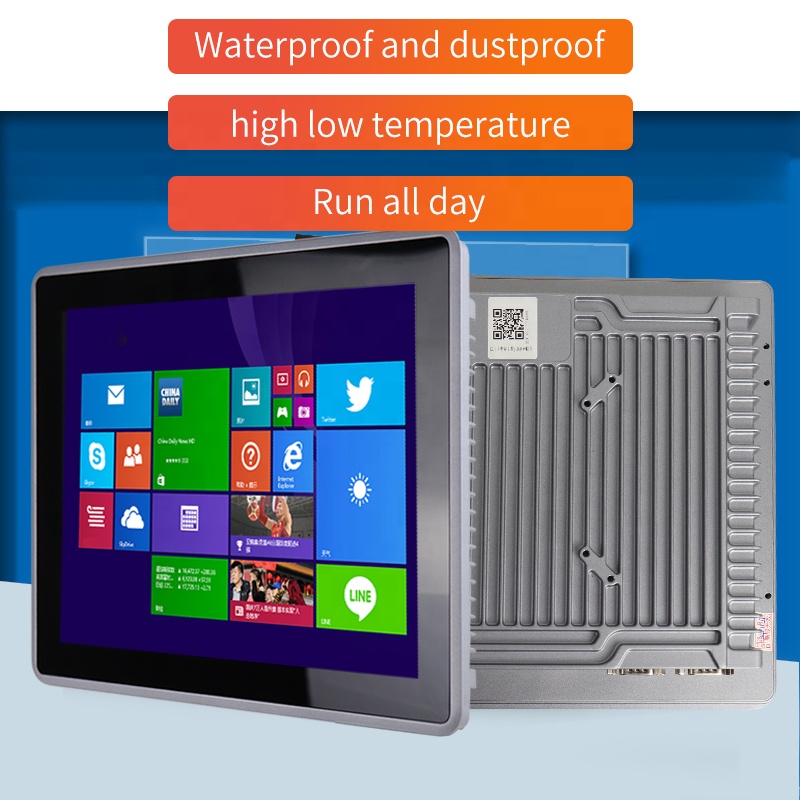

IP65 dustproof and waterproof
Rich interfaces
high low temperature
EMI/EMC anti-interference
Accurate touch control
Provide SDK
High quality SMT technology
Flexible installation

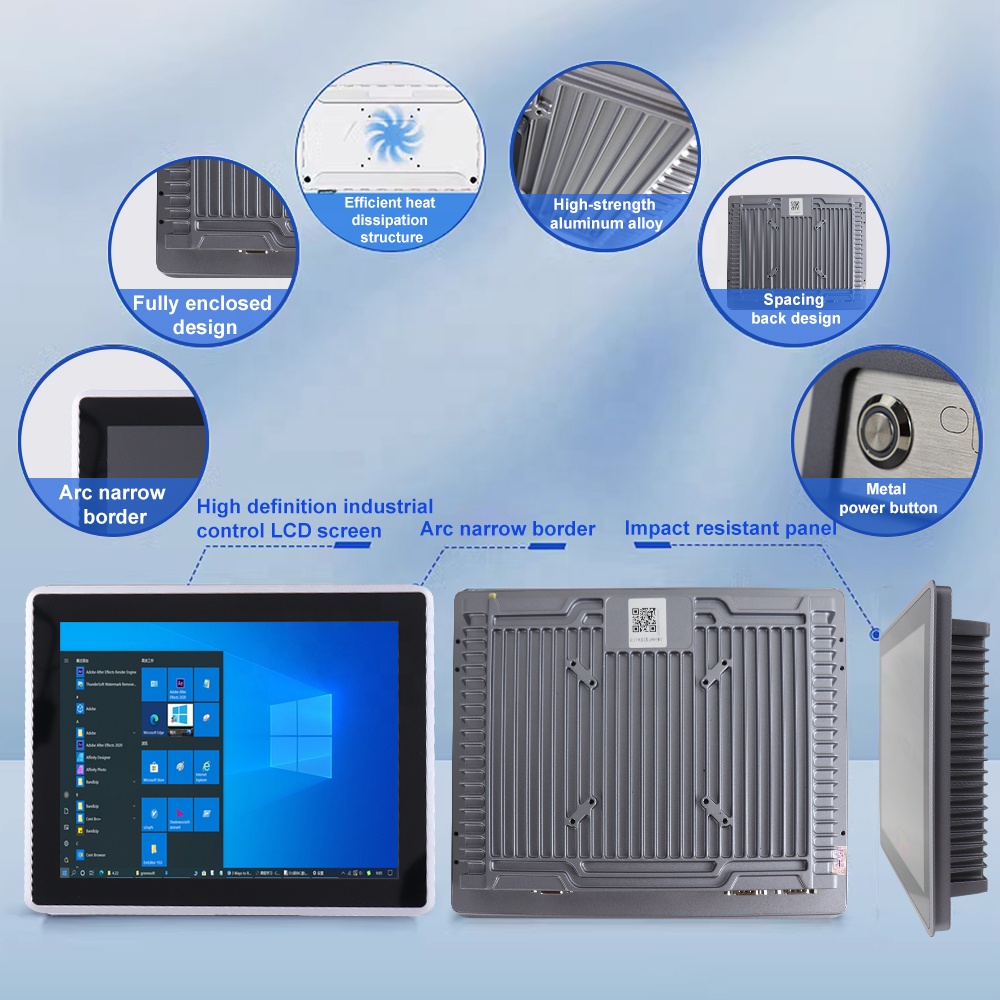

2. Appearance:
Fashionable aesthetic design with a strong sense of technology.Integrating aesthetics, technology, and multiple applications into an intelligent supporting equipment widely applicable in industry and commerce.
3.Screen:High definition industrial control LCD screen+High specification touch screen.Better display effect, more precise and sensitive touch control
16.7M Dynamic colors,350cd/㎡brightness,Full View/Wide View viewing angle
Accurate touch control,LED backlit LCD screen, more sensitive touch and longer service life

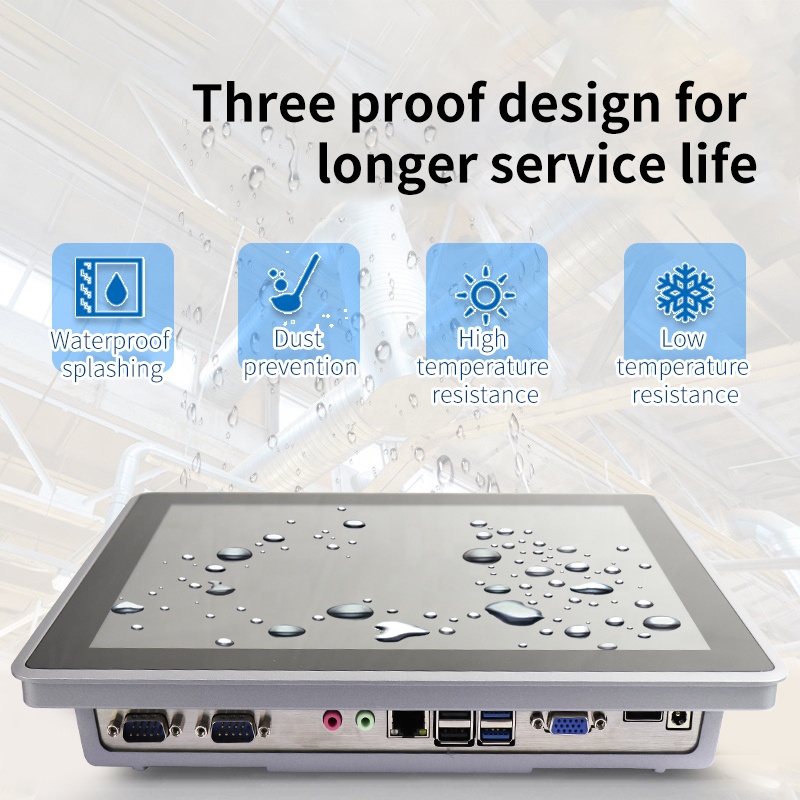

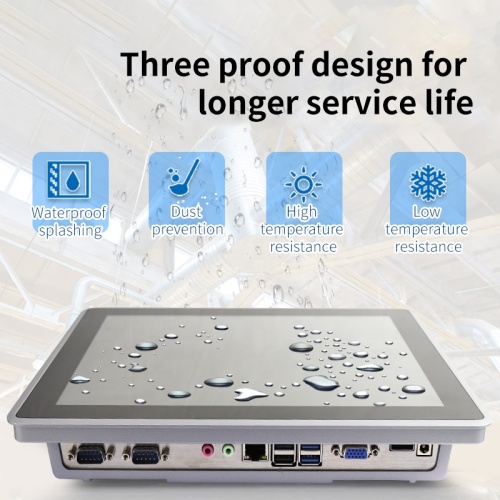

Front panel IP65 dust-proof, waterproof,and oil resistant, suitable for humid and oily industrial environments.

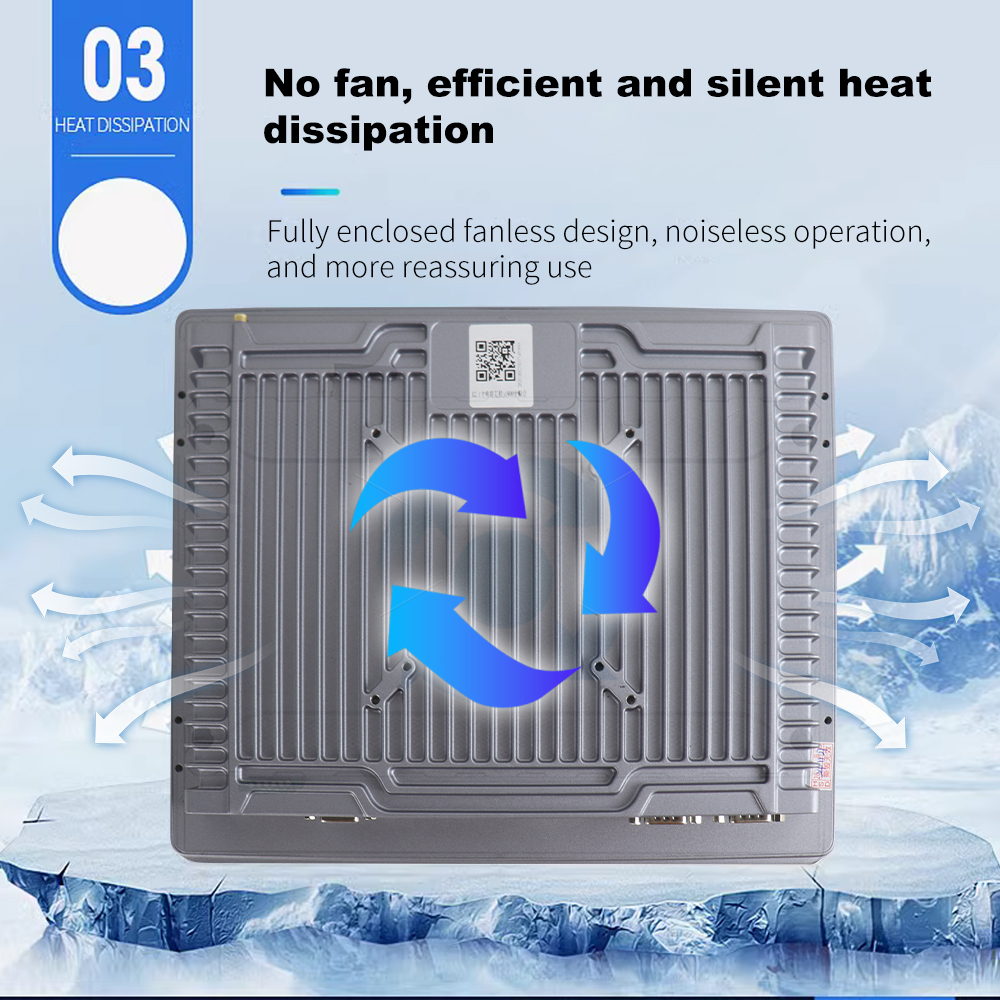

4.Heat dissipation:
No fan, efficient and silent heat dissipation.
Fully enclosed fanless design, noiseless operation, and more reassuring use.
5.Motherboard
Independently developed ARM architecture RK3568 industrial control motherboard.
RK3568 Cortex-A55 quad core processor with a main frequency of 2.0GHz.
6.ARM architecture industrial grade motherboard
RK3568, Cortex-A55 quad core processor Main frequency 2.0HZ
Anti interference/anti-static
Anti interference: meets EMI/EMC standards
ESD: contact voltage 4KV,air vol
7.ARM architecture industrial grade motherboard
RK3568, Cortex-A55 quad core processor Main frequency 2.0HZ
Anti interference/anti-static
Anti interference: meets EMI/EMC standards
ESD: contact voltage 4KV,air voltage 8KV
High quality SMT technology
Imported SMT SMT mounting machine/solder paste, strict production process, stable operation, efficient heat dissipation,and non meltiing adhesive.
System customization upgrade
Standard configuration: Android 11.0 system,supporting system customization,providing multiple upgrade methods such as remote and TF card.
8.Provide a comprehensive SDK toolkit to support the development of upper level application apps.
Support Android system customization, provide system call interface API reference code, support self-developed APP.
9.Performance
Strong performance 24/7 uninterrupted and stable operation.
Adopting industrial grade motherboards to meet industrial grade performance requirements, with the ability to operate continuously and stably 24 hours a day, with a low failure rate.

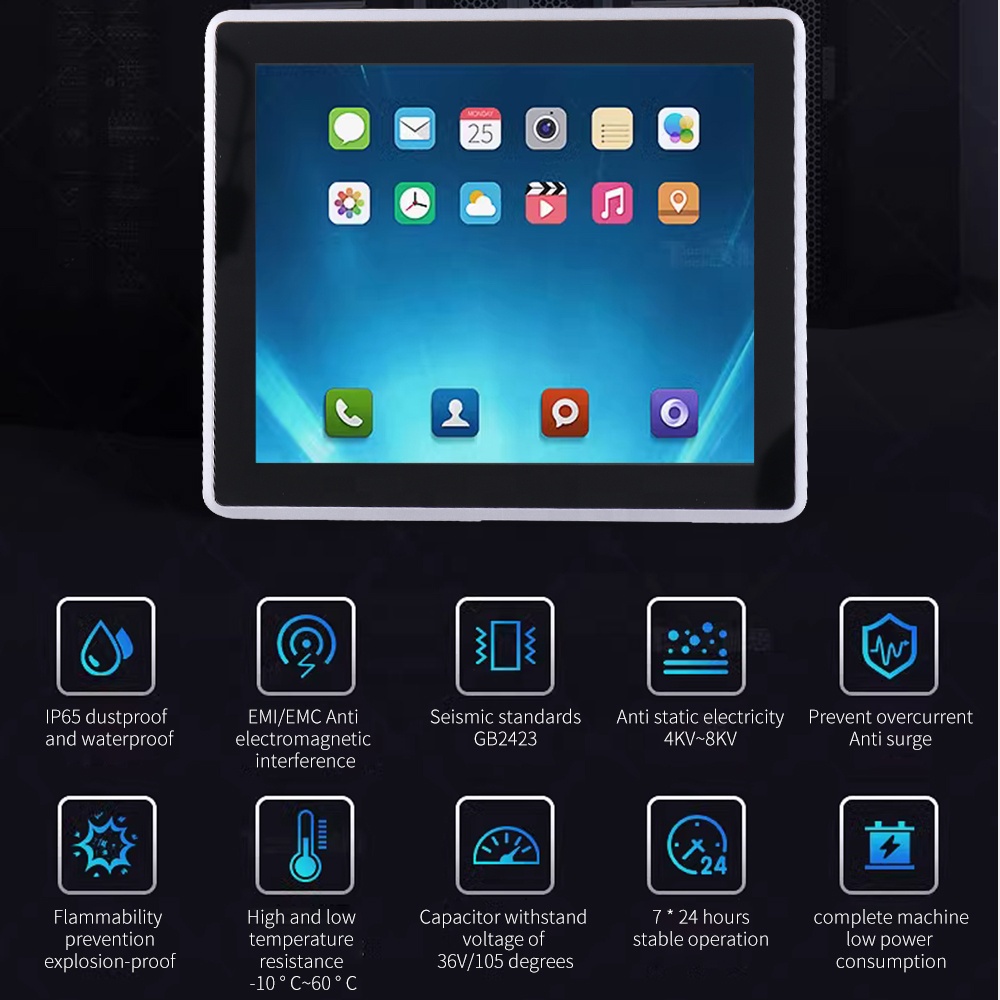

Features:
IP65 dustproof and waterproof
EMI/EMC Anti electromagnetic interference
Seismic standards GB2423
Anti static electricity 4KV-~8kV
Prevent overcurrent Anti surge
Flammability prevention explosion-proof
High and low temperature resistance －10°℃~60°℃
Capacitor withstand voltage of 36V/105 degrees
7*24 hours stable operation
complete machine low power consumption
10.Interface
Preset multiple interfaces to meet more scene expansion needs.
Supports HDMI high-definition output and USB data transfer.
11.Install
Flexible installation supports multiple installation methods.
Supports various installations such as desktop,wall mounted, cantilever, boom, and louver horizontal.
| Display | Model | BGDR-17 | Size | 17 inch |
| Screen type | LED LCD screen | Backlight type | E-LED | |
| Display area | 338(H)×271(V)mm | Resolution | 1280×1024（SXGA） | |
| Brightness | 350cd/m² | Response time | 8ms | |
| Contrast | 1000:1 | Colour gamut | 60% NTSC (CIE1931) | |
| Visual Angle | 89/89/89/89 (Min.)(CR≥10) | Working life | >60000H | |
| Android system (Optional) | Chip | RK3568 | CPU | Quad-core 64-bit Cortex-A55， Main frequency up to 2.0GHz |
| GPU | ARM G52 2EE | NPU | Supports 1T computing power | |
| System support | Android 11.0 | Random access memory | 2G+16GB | |
| Motherboard interface | DC、 TYPE-C、USB3.0、 USB2.0*2、 RJ45、 HDMI OUT、 Headphone holder (back SIM card holder) | Network | Support Gigabit Ethernet, 4G mobile network, WIFI2.4, BT-4.2(optional WIFI5.8, BT-5.0) | |
| Windows system (Optional) | Chip | Intel | CPU | Core i5-3 generation |
| Random access memory | 4G DDR3（Optional） | Hard disk memory | 128G SSD(Optional） | |
| Motherboard interface | DC、HDMI 、VGA、 USB3.0*2、 USB2.0*2 (optional LAN2)、 LAN、 HP OUT、 MIC IN | |||
| Body extension interface | Android: TTL serial port (optional RS232)\ WIFI Windows:RS232*2 (Optional RS485)\WIFI\ Dual network port optional | |||
| Touch screen parameters | Input mode | Finger input | Touch points | 10 point touch |
| Response time | ≤15ms | Positional accuracy | More than 90% of the touch area is ±2mm | |
| Tractor parameter | Bare machine size (L * W * H) | 377(H)×311.5(W)×48(D)mm The thinest 3mm | Shell material (face frame/back shell) | Aluminum alloy/sheet metal |
| Shell color (face frame/back shell) | Black/cold grey | Switching power supply | AC100-240V~(+/-10%),50/60Hz adapter | |
| Power port | DC 12V / 5A/7A | Operating temperature | -10°C ～ 60°C | |
| Storage temperature | -20°C ～ 70°C | Accessory | 1、Product specification*1； 2、Power cord *1； 3、Warranty card*1； 4、Certificate *1； 5、WIFI head *1; 6、Wall hanging plate + wall hanging screws *1 set | |
| Product certification | CCC, Energy-saving Certification, Environmental System Certification | |||
Product Categories : Industrial Computer > Fully Fit Industrial Computer
