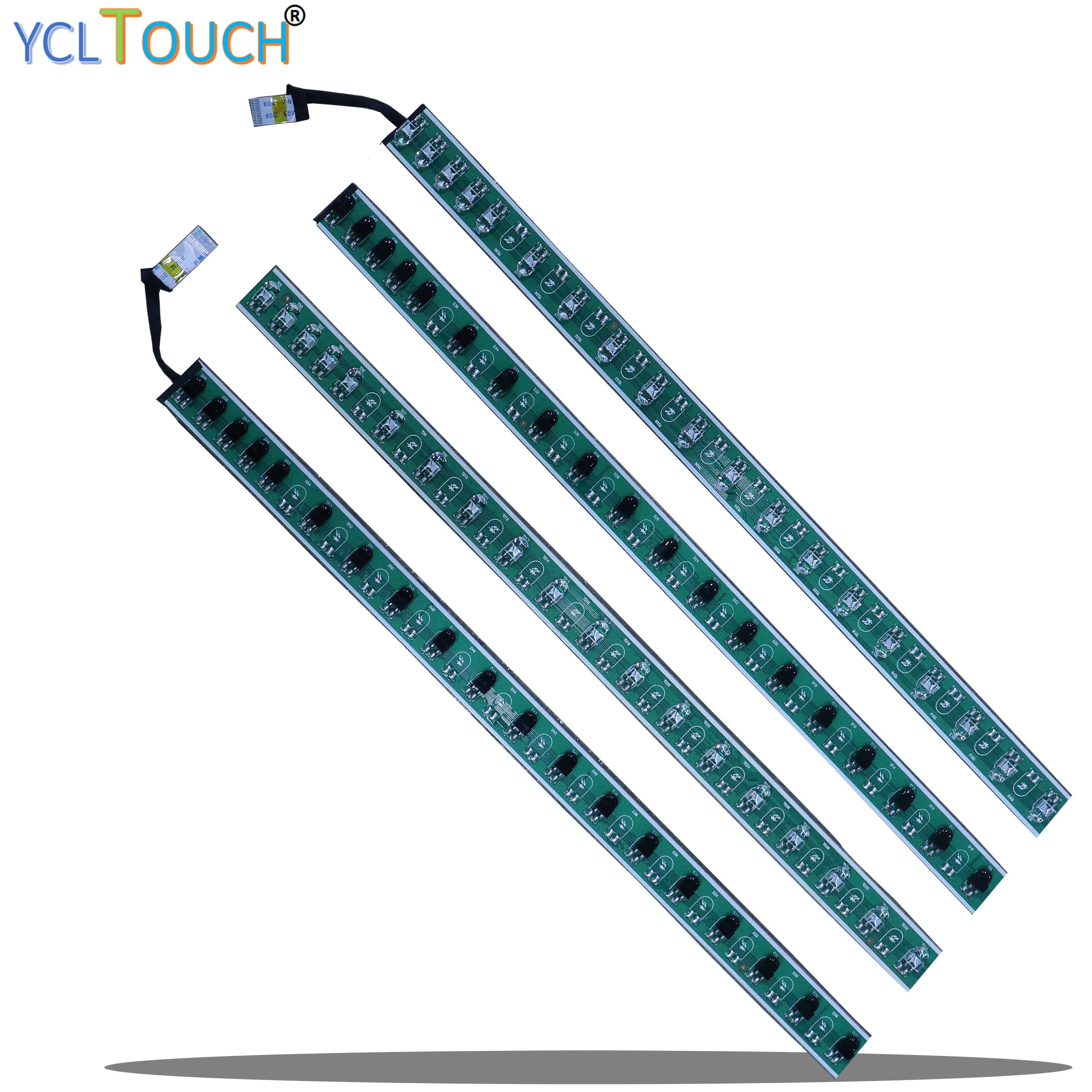

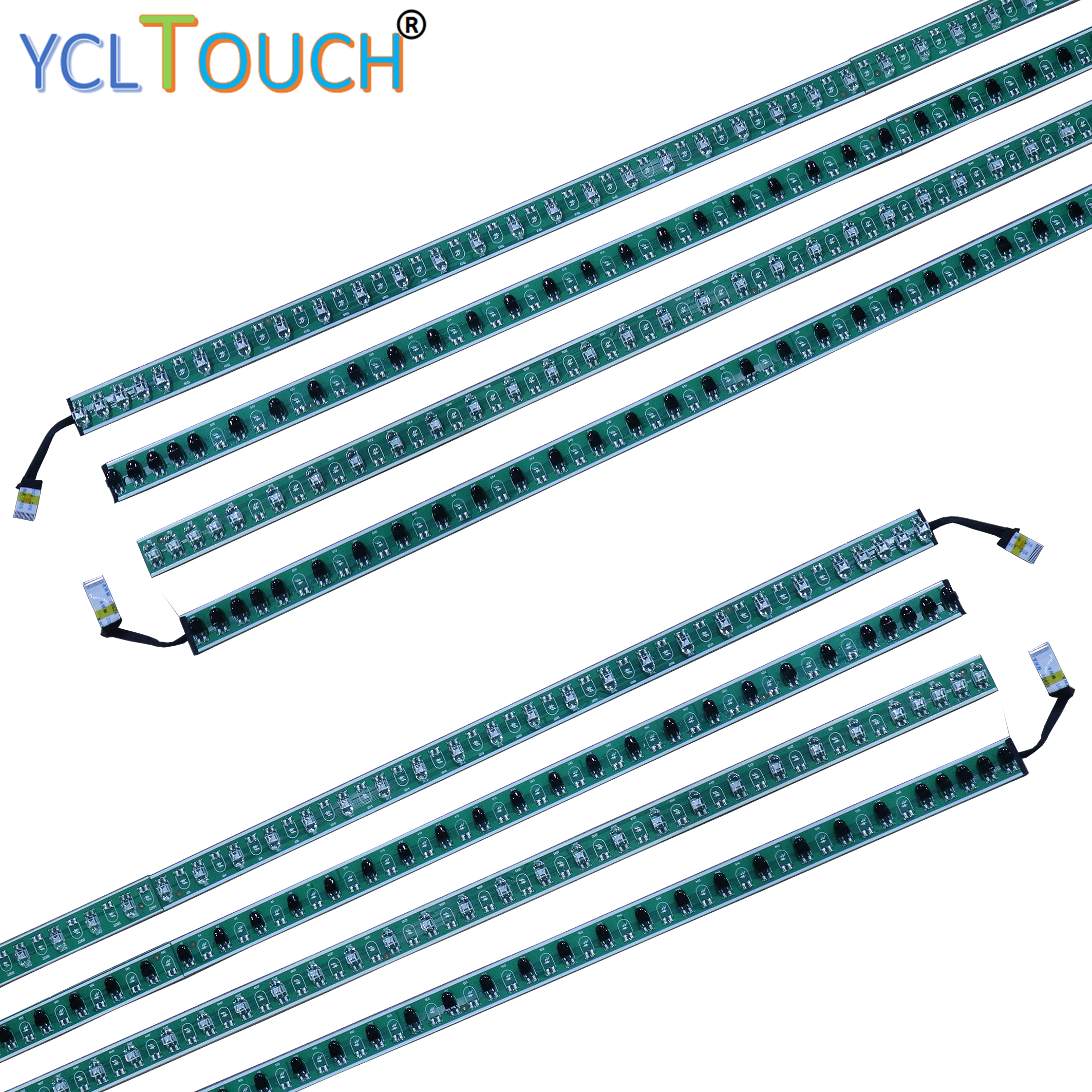

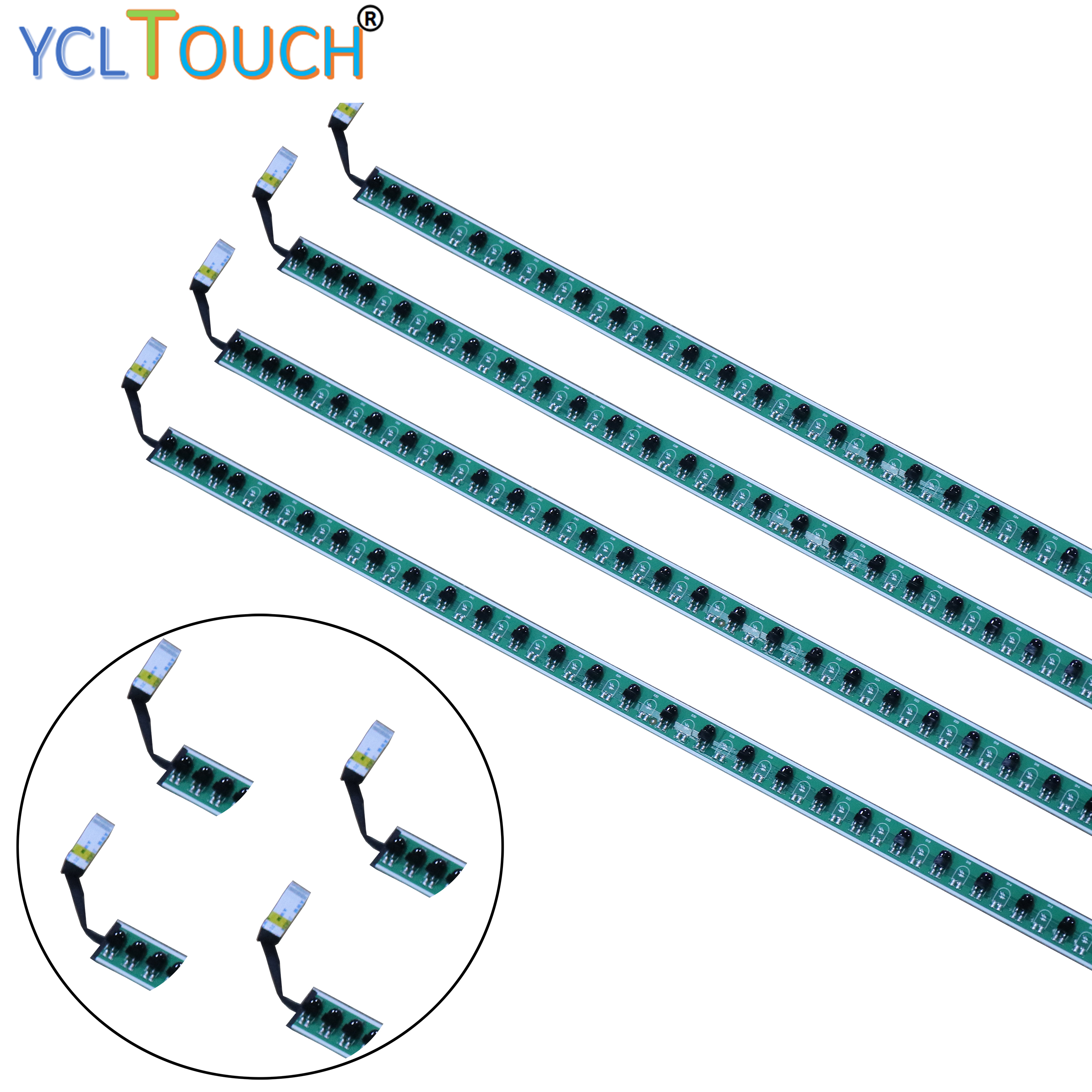

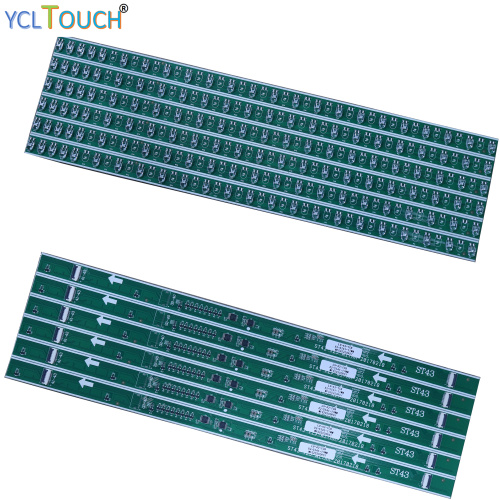

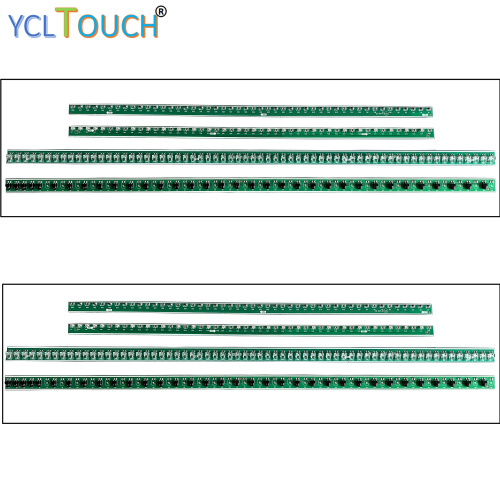

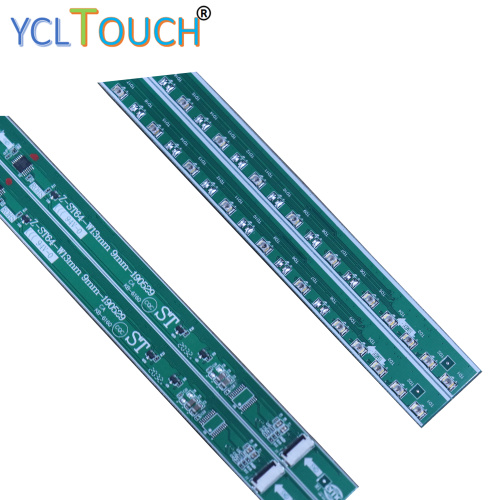

65 inch infrared touch PCBA module

Customized Size Infrared Touch PCBA Module for 65-Inch Displays – High-Precision, Multi-Touch Interaction Solution

This advanced infrared touch PCBA module is engineered for seamless integration into large-format display systems, offering unmatched responsiveness and durability. Designed with a focus on precision, stability, and adaptability, it supports up to 20 simultaneous touch points across a 65-inch screen, making it ideal for interactive kiosks, digital signage, educational technology, and professional design environments. Whether you're deploying this in a commercial setting or a high-end industrial application, the module ensures smooth, accurate input without drift or dead zones—delivering an intuitive user experience that aligns with modern expectations of interactivity.

Key Features

• Multi-Touch Precision: Supports up to 20 touch points (expandable to 40), enabling complex gestures like pinch-to-zoom, rotate, and drag-and-drop, all while maintaining zero-pressure detection for natural interaction using fingers, gloves, or styluses.
• Ultra-Fast Response Time: With a latency as low as 5 milliseconds, this infrared touch solution offers real-time feedback, essential for dynamic content manipulation and immersive applications such as digital artboards or collaborative whiteboarding tools.
• Universal Compatibility: Works seamlessly with Windows, macOS, Linux, Android, and other operating systems—making it a versatile component for embedded systems, open-frame displays, or custom-built interactive terminals.
• Optimized Power Efficiency: Engineered for reduced energy consumption, especially during standby mode, this PCBA delivers eco-friendly performance suitable for 24/7 operations in public spaces like retail stores, museums, and smart offices.
• Robust Design & Flexible Integration: Lightweight construction allows for curved surface mounting and frameless integration; FPC outlet options on long or short sides support various OEM configurations, from compact tablets to massive interactive panels.

Detailed Description

The core of this infrared touch PCBA lies in its advanced signal processing circuitry and high-speed USB 2.0 interface (480 Mbps transmission rate), ensuring minimal lag and reliable recognition even under challenging conditions. Its electromagnetic shielding technology minimizes interference from nearby devices—a critical advantage in busy environments such as trade shows, corporate lobbies, or urban advertising displays. The module’s scanning speed of just 8ms enables rapid refresh cycles, resulting in fluid touch responses regardless of how many users are interacting simultaneously. Unlike traditional resistive touchscreens, this solution requires no pressure, allowing for effortless navigation and extended usability over time. Additionally, its wide operating temperature range—from -10°C to +45°C—ensures consistent performance whether installed indoors or outdoors, in climate-controlled facilities or exposed to seasonal variations.

Use Cases

This 65-inch infrared touch PCBA is particularly well-suited for industries requiring robust, scalable, and highly responsive touch solutions. In education, it transforms classrooms into interactive learning hubs where students can collaborate on projects directly on-screen. For retail, it powers self-service kiosks that guide customers through product catalogs or enable quick checkouts. In healthcare, it serves as a diagnostic tool interface for medical professionals who need precise control over imaging data. Similarly, in manufacturing and engineering, designers use it to manipulate CAD models with multi-touch gestures, enhancing productivity and creativity. The flexibility to customize size (from 10 to 100 inches) makes it adaptable for both small-scale prototypes and enterprise-level installations.

User Feedback Highlights

Users consistently praise the module's accuracy and ease of installation, noting that it significantly reduces setup time compared to older touch technologies. Many appreciate the lack of drift—even after weeks of continuous use—and highlight how the gesture recognition features (such as three-finger swipes for window management) make daily tasks more efficient. Professionals working in creative fields often remark on the smooth writing capabilities, which simulate pen-on-paper feel without lag or jitter. One reviewer noted: “It feels like we’re not just touching a screen—we’re interacting with it.”

Frequently Asked Questions

Is this module compatible with my existing display? Yes, provided your screen has a compatible bezel structure and space for mounting the PCBA board. It supports open-frame designs and can be tailored to fit different panel sizes within the 10–100 inch range.

Can I integrate it into a custom-built system? Absolutely. The modular nature of this PCBA, along with its standard USB interface and optional FPC routing, makes it ideal for OEM development and embedded system integration.

What kind of maintenance does it require? Minimal. The infrared sensor array is sealed against dust and moisture, eliminating frequent cleaning needs. Regular software updates may enhance functionality but hardware servicing is rarely necessary due to the durable alloy housing and internal circuit protection.
