96inch Touch touch PCBA

Basic Info

Brand: YCL TOUCH

Certification: Rohs, Ul, Pcoc

Colour: Black

Is There A Package: Yes

Series: For Business

Flatness Ratio: 16:9

After-sales Service: Return And Replacement, Repair

Product Status: New

Types Of: Infrared

Interface Type: Usb

Place Of Origin: China

Size: 96inch

Additional Info

Packaging: Standard packaging with foam and boxes

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000 Piece/Pieces per Day

Port: Shenhzen

Product Description

1.PCBA infrared board:

New infrared multi-touch technology,touch sensitive,no drift,no ghost point, no blind spot.

2.Product features:

Exclusive customization
Zero pressure touch
Quick response
Anti-electromagnetic interference
Multi touch
Easy to assemble and disassemble

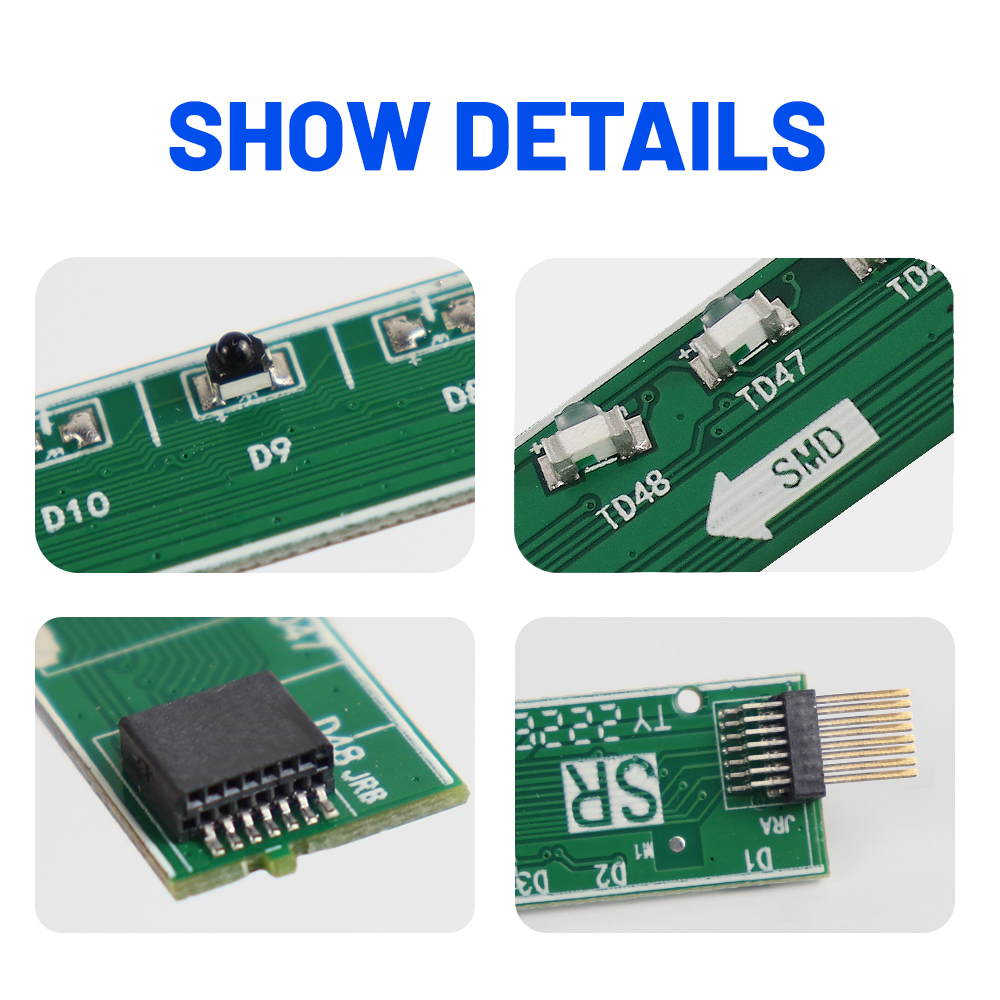

3.PCB Details:

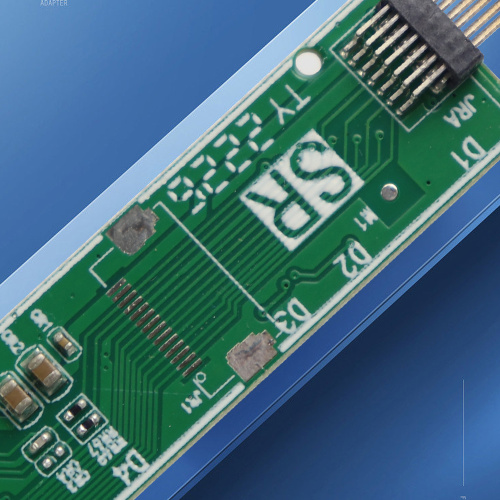

Pin Arrangement
Cable Arrangement

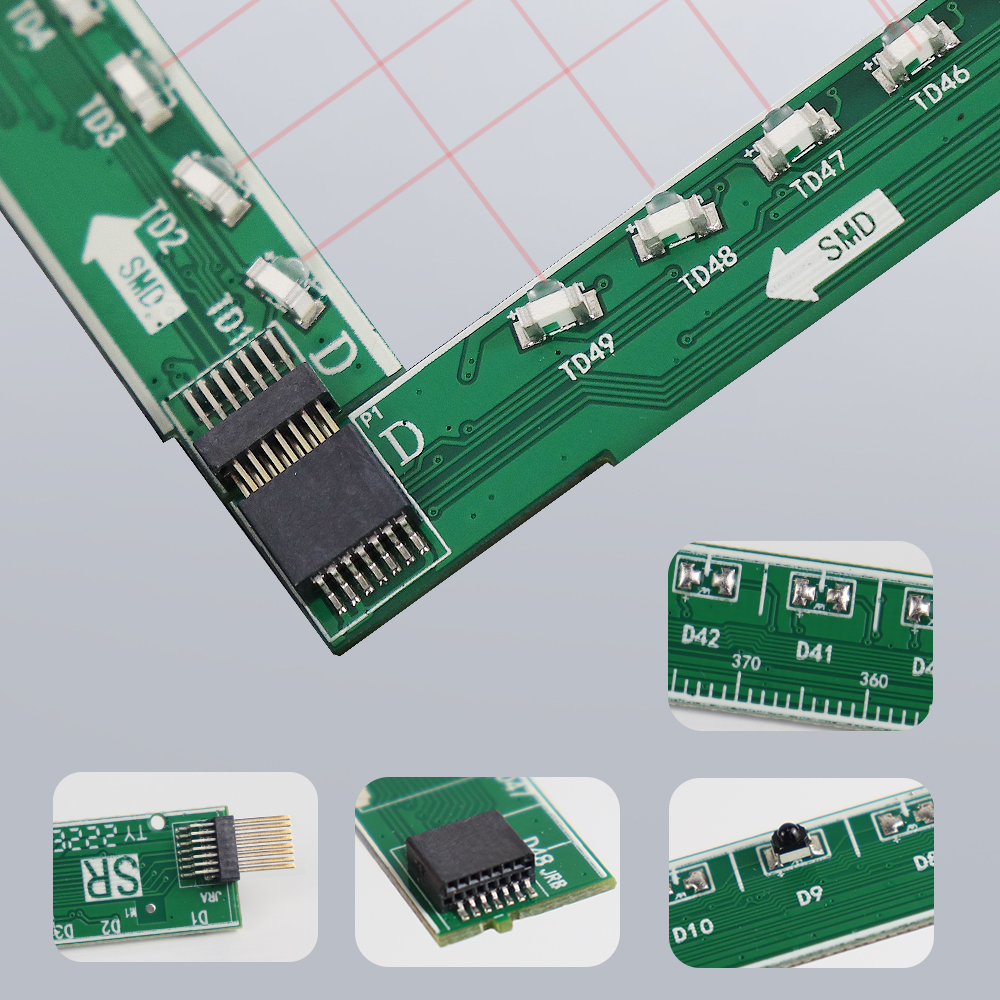

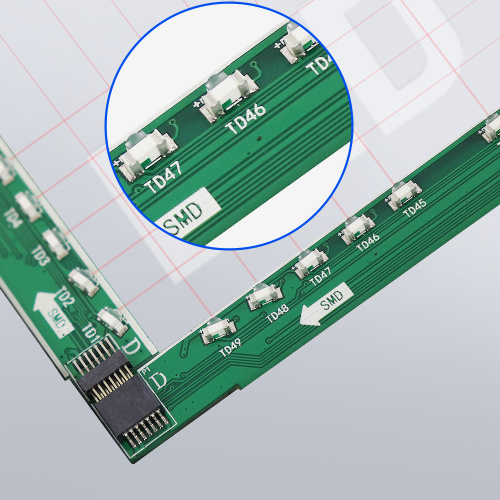

4.Infrared PCBA

Led Tube Cores
Stable Performance
High Precision
Long Service Life

Compact PCBA for Infrared Touchscreen in Mobile Devices

Precise adaptation of large screen: Tailor-made for the 96-inch large screen, the image transmission and display algorithms are optimized to ensure that the picture details are clear and the colors are bright, whether it is to display complex design drawings, high-definition videos, or large-scale commercial demonstrations, it can be accurately restored and present stunning visual effects.
Extremely fast touch response: The response time is controlled within 5ms, the finger touches the screen, the instructions are executed immediately, the writing is smooth and smooth, and the clicking, zooming and other operations are done in one go, and users can feel the efficient interactive experience in real time in teaching, meetings and other scenarios.
Super multi-touch: It supports multi-touch functions up to 40 points and above, and multiple people operate at the same time without interfering with each other, which is suitable for classroom group discussions, team creative collaboration and other scenarios, so that everyone can play and fully interact.
Precise touch positioning: Using advanced positioning technology, the touch points are calibrated with high precision to prevent touch drift, even when operating at the edge of the screen or in the corner, it can be accurately identified to ensure accurate operation.
Stable and anti-interference: The internal circuit design is exquisite, equipped with multiple electromagnetic shielding measures, effectively resisting external electromagnetic interference, and can still operate stably in environments with dense electronic equipment, such as large offices and science and technology exhibition halls, to ensure the accurate transmission of touch commands.
Convenient USB interface: It is only equipped with a USB interface, but integrates a variety of functions, which not only meets the data transmission needs of external devices such as USB flash drive, mouse, and keyboard to achieve fast reading and writing, but also can be connected to specific devices for system upgrade through this interface, which is convenient to use and versatile.
Efficient heat dissipation: Considering the heating problem of the 96-inch screen for a long time, an efficient heat dissipation structure is designed, and the combination of heat sink and ventilation channel is used to quickly dissipate internal heat, avoid performance degradation due to overheating, and prolong the service life of the product.
Lightweight design concept: Despite the huge size, lightweight materials are used to create a structure, reduce the overall weight, which is not only convenient for transportation and installation, but also reduces the pressure on the supporting structure, reduces the cost of use, and is convenient for deployment in various places.
